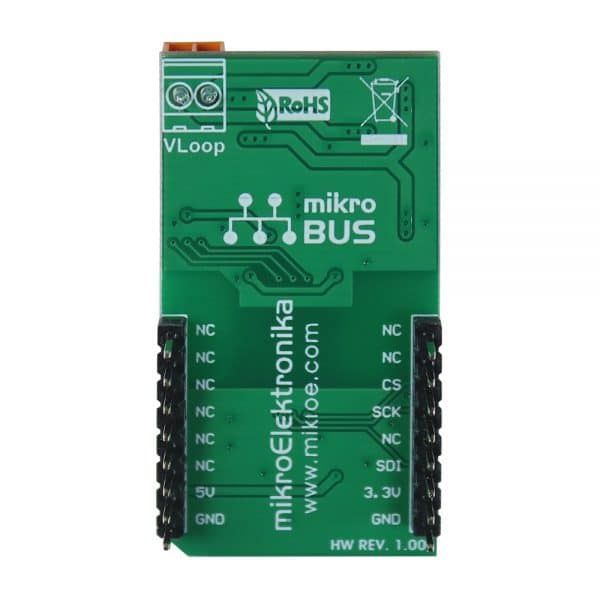

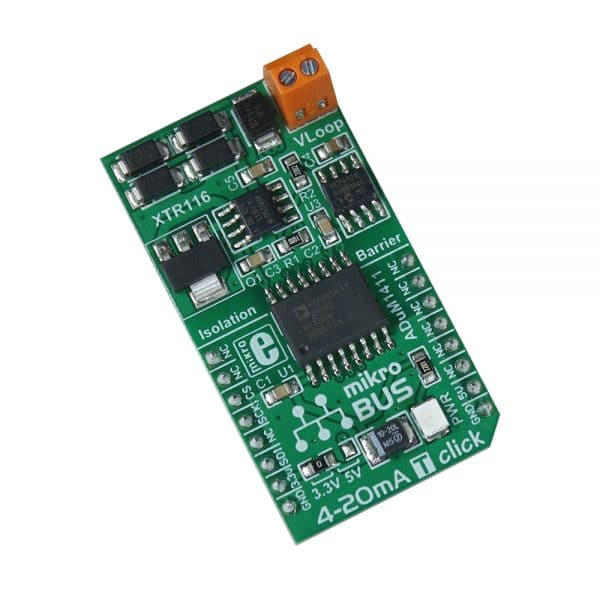

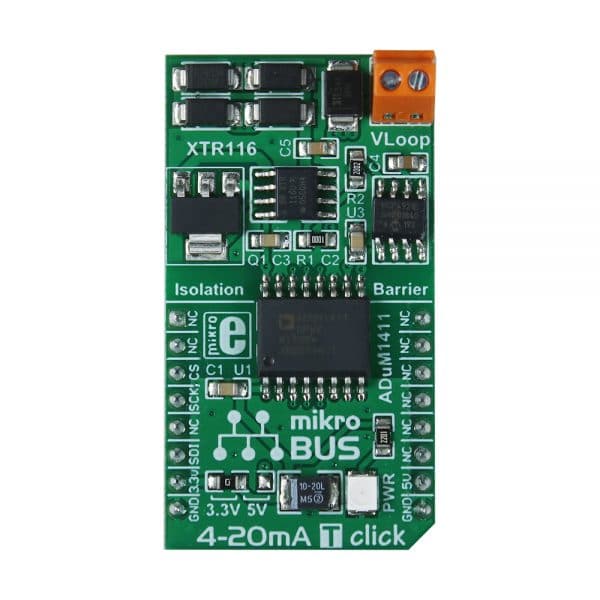

Product Description 4-20 mA T Click Overview: Parallax speeds the process of Propeller 2 development through our partnership with MikroE, who has created a family of 850 Clicks for most I/O functions you may envision. Connect your Click boards to the Propeller 2 Evaluation Board or P2-EC Edge Breakout Breadboard using the #64008 P2 to MikroBus Click Adapter. 4-20mA T Click is an add-on board in mikroBUS form factor. It’s a compact and easy solution for adding 4-to-20mA industry standard communication protocol to your design. It features ADuM1411 Quad-chanel digital isolator, MCP4921 12-bit DAC as well as XTR116 4-20mA current loop transmitter. 4-20mA T Click™ communicates with target board microcontroller via three mikroBUS™ SPI lines (SDI, SCK, CS). Together with 4-20mA R Click™ this board forms a complete 4-to-20mA current loop standard. The board is designed to use 3.3V and 5V power supply. LED diode indicates the presence of power supply. 4-20 mA T Click Applications: Board is ideal for using in field of industrial process control and test systems. It serves as interface between sensors or instruments connected to MCU 4-20 mA T Click Specifications: On-board modules: ADuM1411 Quad-chanel digital isolator, MCP4921 12-bit DAC as well as XTR116 4-20mA current loop transmitter Key Features: The board receives the input digital signal from the microcontroller and sets the output loop current (4-20mA) Interface: SPI Compatibility: mikroBUS Click board size: M (42.9 x 25.4 mm) Input Voltage: 3.3V or 5V Weight: 34g
