4-20 mA R Click

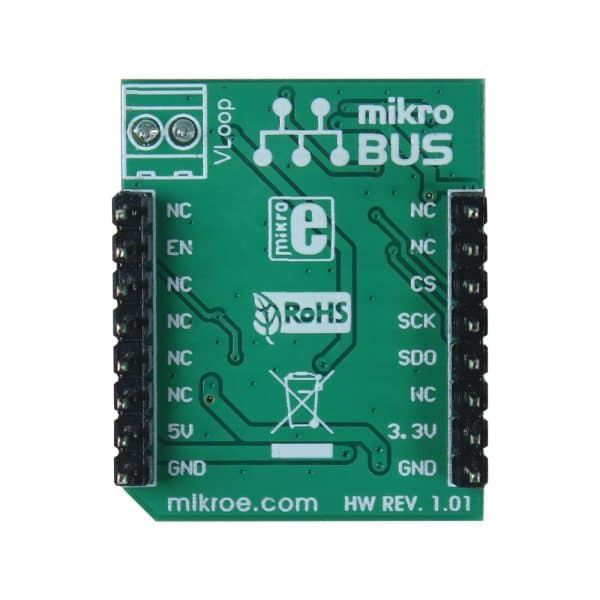

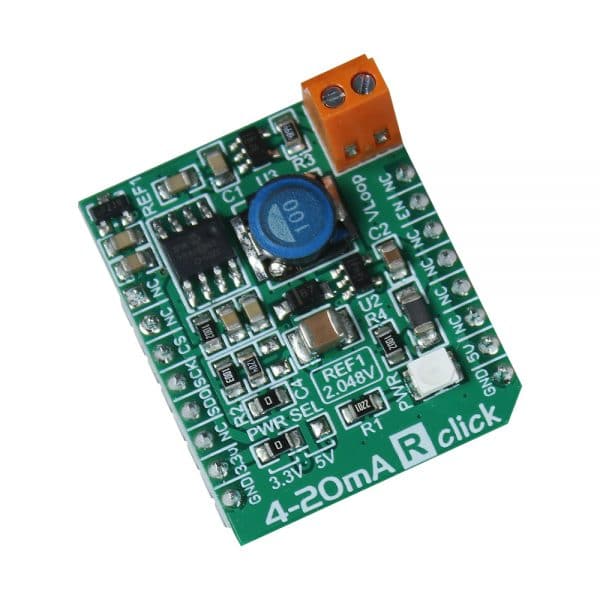

Product Description 4-20 mA R Click Overview: Parallax speeds the process of Propeller 2 development through our partnership with MikroE, who has created a family of 850 Clicks for most I/O functions you may envision. Connect your Click boards to the Propeller 2 Evaluation Board or P2-EC Edge Breakout Breadboard using the #64008 P2 to MikroBus Click Adapter. 4-20mA R Click is an add-on board in mikroBUS form factor which serves as a receiver in a 4-20mA current loop standard. It features INA196 current shunt monitor, MCP3201 12-bit ADC as well as TPS61041 DC/DC boost converter. It receives output current (4-20mA) from transmitter and converts it into a voltage (0.4-2V). This voltage is converted into a 12-bit data signal in the MCP3201 A/D converter and sent via mikroBUS™ SPI lines. Together with 4-20mA T Click™ this board forms a complete 4-to-20mA current loop standard. It is designed to use either 3.3V or 5V power supply. 4-20 mA R Click Specifications: Type: Current Applications: Board is ideal for using in field of industrial process control and test systems. It serves as interface between sensors or instruments connected to MCU On-board modules: INA196 current shunt monitor, MCP3201 12-bit ADC as well as TPS61041 DC/DC boost converter Key Features: The board receives output current (4-20mA) from transmitter and converts it into a voltage (0.4-2V) Interface: SPI,GPIO Compatibility: mikroBUS Click board size: S (28.6 x 25.4 mm) Input Voltage: 3.3V or 5V Weight: 30g For datasheet see the manufacturer’s product page.
