P2-ES Eval Board Accessory Set

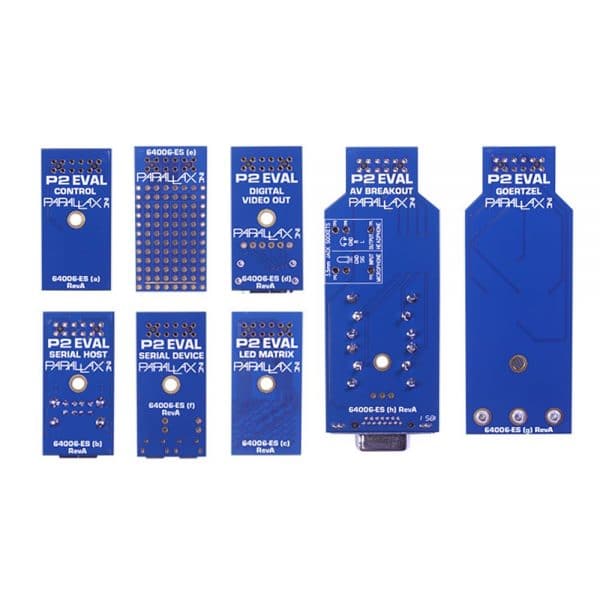

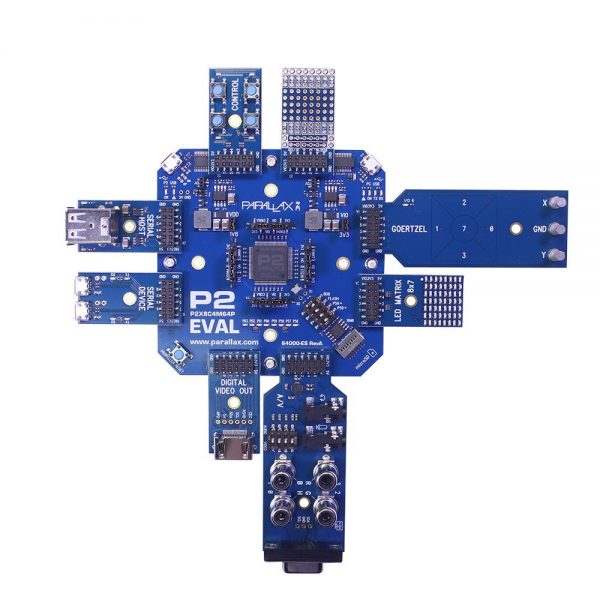

Product Description P2-ES Eval Board Accessory Set Overview: The P2-ES Eval Board Accessory Set is designed for use with Propeller 2 development board 2×6 accessory headers. Each board’s 2×6 pass-through sockets stack on top of accessory headers on the Propeller 2 Evaluation Board (#64000). It is also compatible with a P2 Edge Module Breadboard (#64020) or P2 Edge Mini Breakout Board (#64019) with a P2 Edge Module (#P2-EC) installed. Multiple accessory boards may be connected at the same time, making it very convenient to fully explore the capabilities of the Propeller 2 multicore microcontroller.  These boards are available individually, or in this Accessory Set with one of each. Accessory Boards Included: (#64006A) Control — four pushbuttons and four LEDs (#64006B) Serial Host — twin USB type A sockets (#64006C) LED Matrix — a 8×7 grid of green LEDs for Charlieplexing (#64006D) Digital Video Out — HDMI-type connector (#64006E) Mini Prototyping — 8×12 grid of plated thru-holes with labled power and I/O (#64006F) Serial Device — two microUSB type sockets with individual activity LEDs (#64006G) Goertzel — a set of non-contact position sensing pads (#64006H) A/V Breakout — 3.5mm Audio in/out, four RCA audio/video, VGA Product guide, RoHS CE and UKCA Declarations of Conformity are available under the Downloads tab. PCBs assembled, tested, and completed in Rocklin, California.
