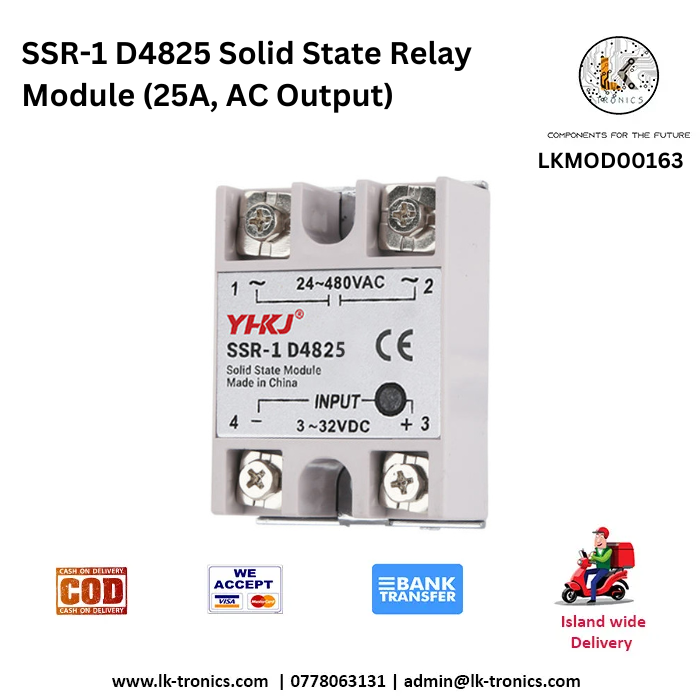

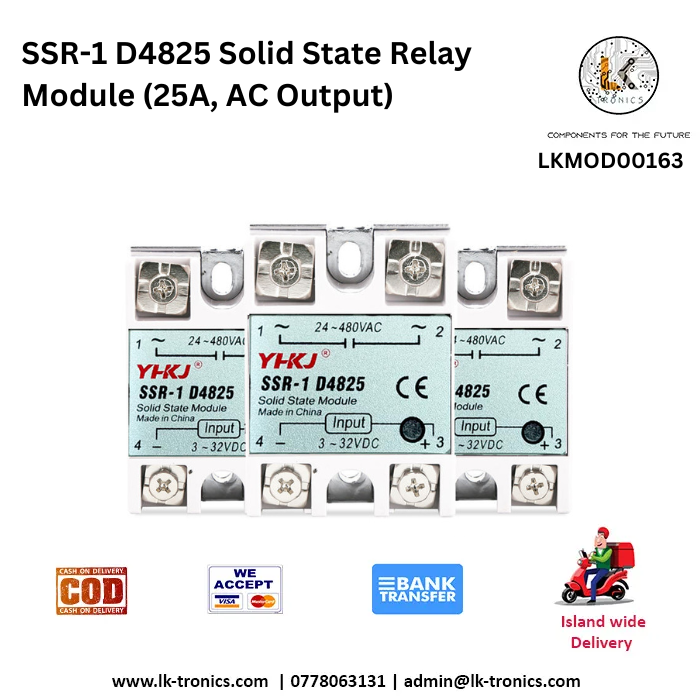

SSR-1 D4825 Solid State Relay Module (25A, AC Output)
$22.89
$41.89
SSR-1 D4825 Solid State Relay Module (25A, AC Output)The SSR-1 D4825 is a high-performance single-phase solid state relay designed for reliable switching of AC loads. With an input control signal of 3–32V DC and an output rating of up to 25A at 24–480V AC, it provides fast, silent, and durable switching compared to mechanical relays. It is widely used in automation, temperature control, and industrial applications where long life and noise-free operation are essential.Key Features:Load current capacity: 25A (AC output)Load voltage range: 24–480V ACControl input voltage: 3–32V DCZero-cross switching for reduced electrical noiseOptical isolation for safe and reliable operationFast switching speed, no mechanical wearCompact module with screw terminals for easy installationSpecifications:Model: SSR-1 D4825Relay type: Solid State, single-phaseOutput load voltage: 24–480V ACMaximum load current: 25AInput control voltage: 3–32V DCTrigger current: ≥7.5 mAInput control current: ≤25 mAOn-state voltage drop: ≤1.6VOff-state leakage current: ≤2 mASwitching time: ≤10 msInsulation resistance: ≥50 MΩ at 500V DCDielectric strength: 2500VAC, 1 minuteOperating temperature: -20°C ~ 80°CMounting type: Panel mount with screw terminalsCooling: External heatsink recommended at higher loadsApplications:Temperature controllers (heaters, ovens, furnaces)Industrial automation systemsMotor control (light loads)Lighting systemsHome and lab automation projects SKU: LKMOD00163 Category: Electronics accessories
