Kyoritsu Clamp Meter, 2432

$27.54 $53.98

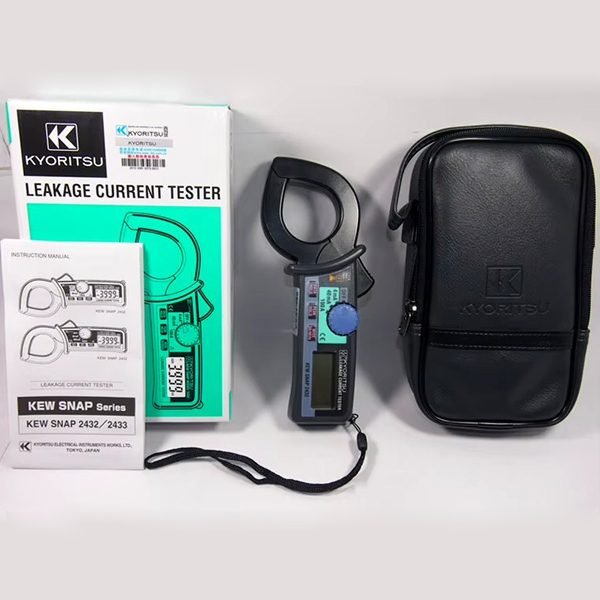

The Kyoritsu Clamp Meter, 2432 is a 100A high-sensitivity AC clamp meter, capable of measuring current leakage. Comprising a 40mm jaw, the 2432 model is ideal for detecting wire faults and insulation breakdown.High Sensitive ModelFrequency Selector Switch to eliminate the effect of harmonics.Three AC ranges:4mA/40mA/100A.Resolution 0.001mA.AC A (50/60Hz)4/40mA/100A ±1%rdg±5dgt (4/40mA) ±1%rdg±5dgt (0 – 80A) ±5%rdg (80.1 – 100A)AC A (WIDE)4/40mA/100A ±1%rdg±5dgt [50/60Hz], ±2.5%rdg±10dgt [20Hz – 1kHz] (4/40mA) ±1%rdg±5dgt [50/60Hz], ±2.5%rdg±10dgt [40Hz – 1kHz] (0 – 80A) ±5%rdg [50/60Hz], ±10%rdg [40Hz – 1kHz] (80.1 – 100A)Maximum circuit voltage600V AC/DC (between line/neutral) 300V AC/DC (against Earth)Conductor sizeØ40mm max.Frequency response20Hz – 1kHz (40Hz – 1kHz:100A)Effect of External Stray Magnetic Field2mA AC approx. in proximity to a 15mm-dia conductor carrying 100A ACSafety StandardIEC 61010-1 CAT III 300V Pollution Degree 2 IEC 61010-2-032Response TimeApprox. 2 secondsPower sourceTwo R03 or equivalent (DC1.5V) batteriesDimensions185(L) × 81(W) × 32(D)mmWeight290g approx.Included Accessories9097 (Carrying Case) R03 (1.5V) × 2 Instruction ManualClick for More Information
