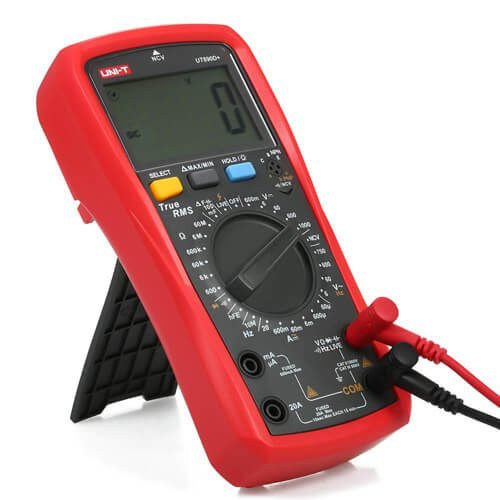

The UT890D Digital Multimeter 6000-count true RMS digital multimeter is designed with a large LCD. The maximum measurable capacitance is 100mF, with a fast response time of less than 12s. The NCV and continuity measurement have acousto-optic indications. UT890D has a LIVE function for distinguishing between live and neutral wires. In addition, it is equipped with automatic fuse blown detection and high voltage protection.Features of the Digital MultimeterManual range/True RMSData hold/RELAudible/visual alarm (NCV/continuity)Current (AC/DC) mode memoryLow battery indication: ≤2.5VNCV/hFE/Max/MinDiode test/Continuity testHigh voltage false detection: 1000VrmsOver-current alarm: ≥20AAuto power off/LCD backlightSpecificationRangeUT890D DC Voltage600mV/6V/60V/600V/1000V±(0.5% 2)AC Voltage6V/60V/600V/750V±(0.8% 3)ACV Frequency10Hz～10kHz±（0.1% 5)DC Current60uA//600uA/6mA/60mA/600mA/20A±(0.8% 8)AC Current60uA/600uA/6mA/60mA/600mA/20A±(1% 12)Resistance600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ±(0.8% 3)Capacitor6.000nF/60.00nF/600.0nF/6.000μF/60.00μF/600.0μF/6.000mF/60.00mF/100.0mF±(3% 10)Frequency9.999Hz～9.999MHz±(1.0% 5)FeaturesDisplay Count6000Manual Range√NCV√hFE√Diode Test√Continuity Test√Live√True RMS√Fuse blowing alarm√Acousto-optic indication(NCV/continuity)√High voltage false detection1000Vrms√Current (AC/DC) mode memory√Over-current alarm≥20A√Low Battery Indication≤2.5V√Data Hold√REL√Max/MinV 、A√Auto Power Off15Min√Backlight30s√Operation Temperature0℃～40℃SafetyCAT Ⅱ 1000V/CAT III 600VGeneral CharacteristicsPower1.5V x 2Product ColorRed and GrayProduct Net Weight346gProduct Size183mm x 88mm x 56mmStandard Individual PackingGift Box, ManualStandard Quantity Per Carton40pcsStandard carton measurement690mm x 450mm x 340mmStandard carton gross weight23KgGeneral Applications of UT890D Digital Multimeter:1. Electrical switchboards 2. HVAC systems 3. Electrical circuit faults detection 4. Installation or maintenance of electronics/factory equipment 5. Electronics component development, circuit board design 6. Users who need to distinguish between neutral/live wire frequently.
