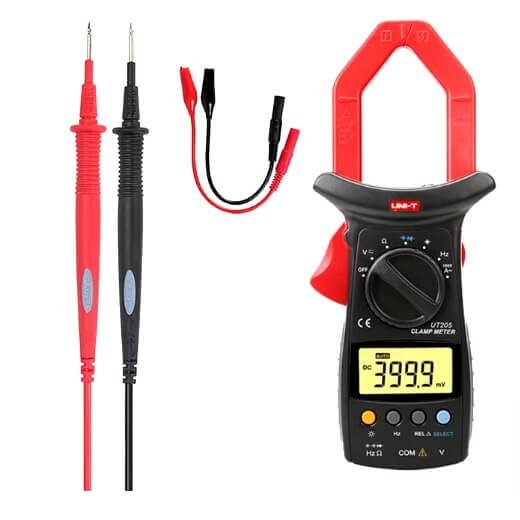

UNI-T UT205 Digital Clamp Meter is a low-power, stable, safe, and reliable 4000-count AC clamp meter. The full range overload protection circuit and unique design make it a special electrical meter with superior performance.Applications of UNI-T UT205 Digital Clamp Meter:The meter is an ideal tool for maintenance in smelting, manufacturing, petroleum, electric power, chemical, and other industries.SpecificationsRangeUT205AC Current (A)400A/1000A±(1.5% 5)400A/1000A≥800A:±(3% 5)AC Voltage (V)4V/40V/400V/600V±(1.2% 5)DC Voltage (V)400mV/4V/40V/400V/600V±(0.8% 1)Resistance (Ω)400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ±(1% 2)Frequency (Hz)10Hz~10MHz±(0.1% 3)FeaturesDisplay count3999Auto range√Jaw opening40mmDuty cycle0.1%~99.9%√Diode test√Auto power off√Continuity buzzer√Low battery indication√Data hold√LCD backlight√Flashlight√Full icon display√Input impedance for DCV≥10MΩ√General CharacteristicsPower9V battery (6F22)LCD size56.4mm × 37mmProduct ColorRed and greyProduct net weight522gProduct size106.4mm × 52mm × 257mmStandard accessoriesBattery, test leads, alligator clipsstandard individual packingToolbox, gift boxStandard quantity per carton20pcsStandard carton measurement598mm × 375mm × 485mmStandard carton gross weight27.3kg
