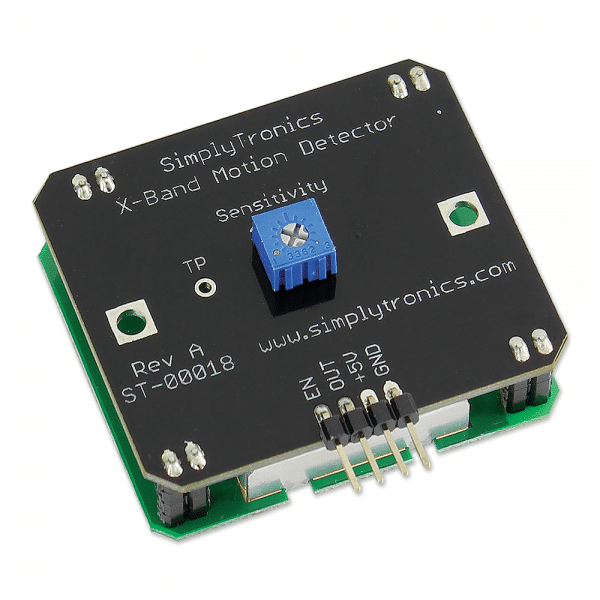

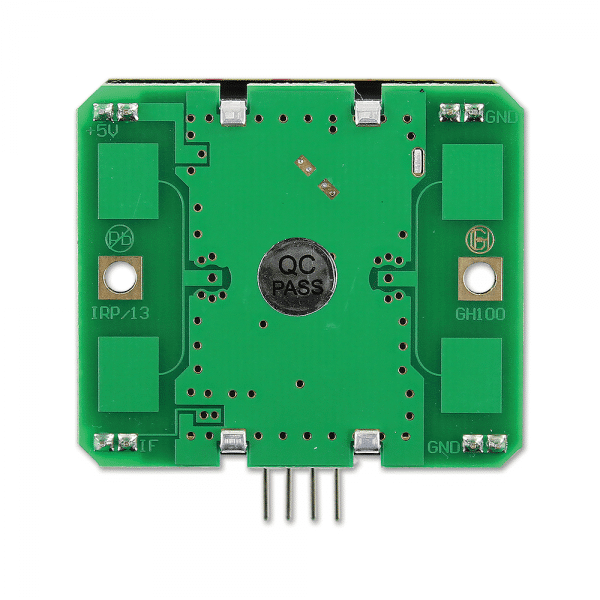

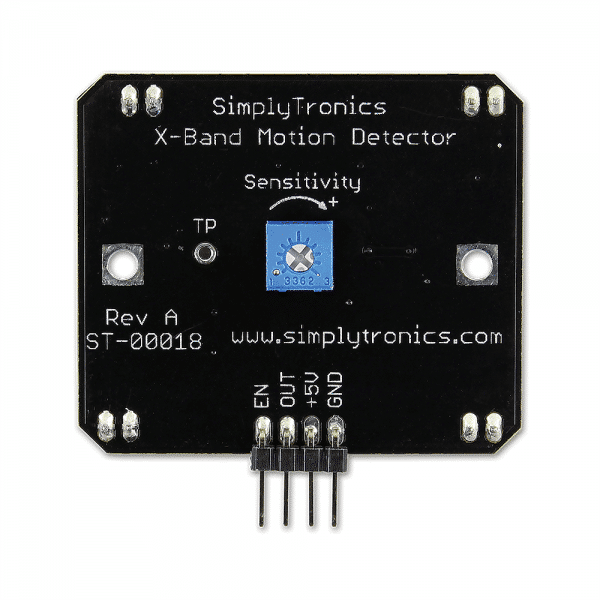

Product Description This product is retiring; quantity limited to stock on hand. X-Band Motion Detector Overview: The X-Band Motion Detector’s sensor is a common component in security systems and automatic door openers and can detect movements within a room, yard, or even on the other side of a wall. The X-Band Motion Detector operates in the X-band frequency, at 10.525 GHz and indicates detected movements with oscillations in its high/low output. Sensitivity is manually adjustable with a potentiometer, offering direct line of sight detection from roughly 8 to slightly over 30 ft (~2.4 to 9 m). Key Features: Trim potentiometer for manually adjustable sensitivity 4-Pin SIP header for breadboard or through-hole prototyping Built-in series resistor for compatibility with the Propeller microcontroller and other 3.3 V devices Plated test point hole for monitoring pre-comparator signal Application Ideas: Security systems Automatic door openers Automatic lighting Nuisance animal deterrence X-Band Motion Detector Details: Operation frequency of 10.525 GHz Able to detect motion through walls and windows More immune to false triggers than passive infrared motion sensors Active-high enable pin with internal pull-up resistor Power supply requirements: regulated 5 VDC, 8 mA Communication: High (3.9 V) / low (0 V) signal oscillates with motion Dimensions: 1.8 x 1.75 x 0.75 in (46 x 45 x 19 mm) Operating temp range: 32 to 131 °F (0 to 55 °C)
