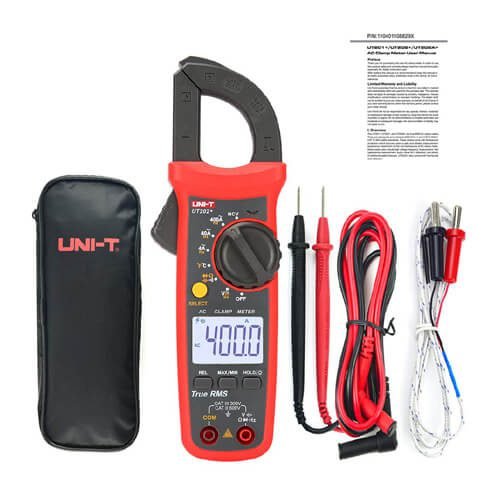

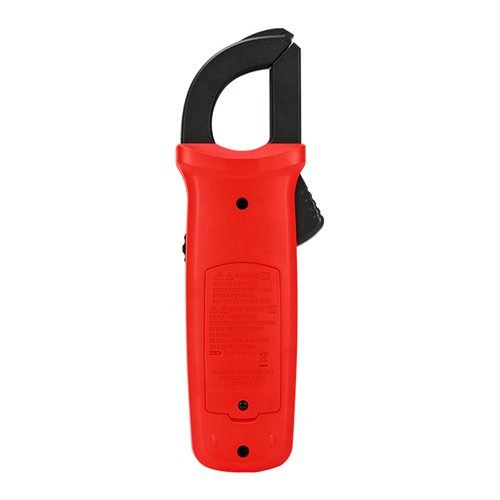

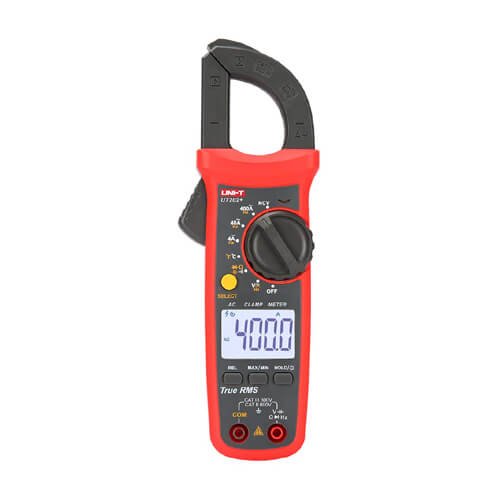

UNI-T UT202 Digital Clamp Meter 400-600A Automatic Range True RMS
$31.67
$52.89
UNI-T UT202 Digital clamp meter 400-600A clamp meter UT200 series automatic range true RMS high precision multimeter. AC/DC Voltage, AC Current measurement, Continuity buzzer, Diode, Resistance Test, MAX/MIN Data, REL, True RMS, Backlight, Frequency, Capacitance Test, Temperature Test.Features of UT202 Digital clamp meterLarge screen LCD display, fast ADC / analog to digital converterFull-featured false detection protection, overvoltage, and overcurrent alarm promptTrue RMS; voltage measurement 600VWith high voltage frequency measurementAC current measurement functionWith the current frequency measurement function60mF large capacitance measurement (UT202A /UT204 )Neutral/live wire test (UT202A /UT204 )SpecificationsRangeUT202 AC current (A)400A± (2% 10)600AAC current frequency (Hz)50Hz~100Hz± (1% 5)DC current (A)NoNoAC voltage (V)600V± (0.8% 5)AC voltage frequency (Hz)10Hz~10kHz± (1% 5)10Hz~60kHzDC voltage (A)600V± (0.5% 2)Resistance (Ω)40MΩ± (0.8% 2)60MΩCapacitance (F)4mF± (4% 5)40mF60mFTemperature (℃)-40℃~1000℃± (1.5% 5)Frequency (Hz)10Hz~10MHzFeaturesDisplay count4000Auto range√Jaw opening28mmTrue RMS√NCV√Live wire testContinuity test√Diode√MAX/MIN√Relative mode√Zero modeData hold√Low battery indication√Auto power off√General CharacteristicsPower1.5V battery (R03) x 2Display37mm x 25mmProduct ColorRed and greyProduct net weight248gProduct size215mm x 63mm x 36mmStandard accessoriesBatteries, test leads, ThermocoupleStandard individual packingGift box, carrying bag, English manualStandard quantity per carton40pcsStandard carton measurement485mm x 295mm x 385mmStandard carton gross weight17.8kgClick to Know More Information UNI T UT202 Digital Clamp Meter 400 600A Automatic Range True RMSUT200 series 400-600A Digital Clamp MeterUT201 /UT202 /UT202A /UT203 /UT204 series is a stable, safe and reliable digital clamp meter. The circuit design is based on the large-scale integrated circuit double integral AC/ DC conversion, full-range overload protection circuit, unique the appearance design makes it a special instrument for electricians with superior performance. We have the largest stock of UNI-T brand instruments.
