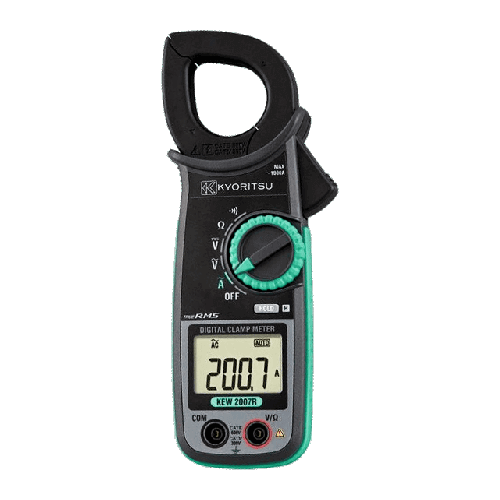

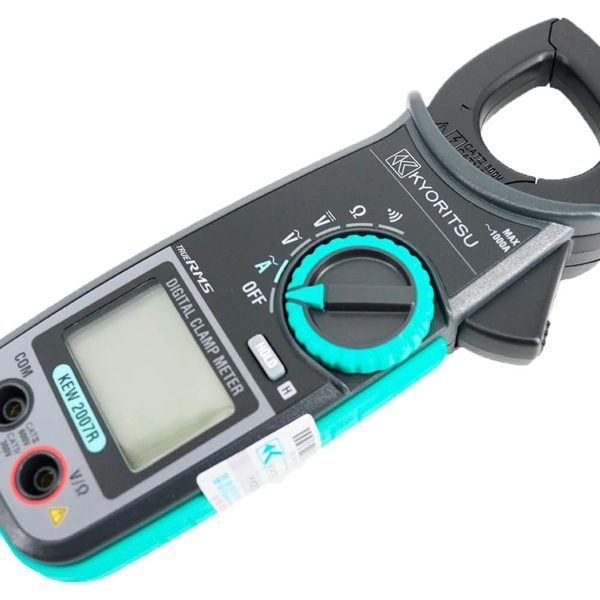

Kyoritsu KEW 2007R Digital AC Clamp Meter is rugged, reliable, and trusted. AC DIGITAL CLAMP METER De Facto Standard 1000A. AC Clamp meter CAT 300V MAX 1000A. DATA HOLD and Fully Safety jaw. Ergonomic beyond-molded body gives convenient one-hand operation. Large, comprehensible-to-retrieve display following an Accurate reading gone. True RMS 600/1000A auto-ranging Long battery energy, Safety Standard.Features of Kyoritsu KEW 2007R Digital AC Clamp MeterFully safe jawThe ergonomic over-molded body gives convenient one-hand operationLarge easy-to-read display with 0.1A resolutionAccurate reading with True RMS600/1000A auto-rangingLong battery lifeSafety Standard: IEC 61010-1 CAT IV 300V / CAT III 600VSpecifications of Kyoritsu KEW 2007R Digital Clamp Meter:AC A 600.0/1000A (Auto-ranging): ±1.5%rdg±4dgt [45 – 65Hz]; ±2.0%rdg±4dgt [40 – 400Hz] AC V 600.0V: ±1.2%rdg±3dgt [45 – 65Hz]; ±1.5%rdg±4dgt [40 – 400Hz]DC V 600.0V: ±1.2%rdg±3dgt; Ω 600.0Ω/6.000kΩ (Auto-ranging); ±1.3%rdg±5dgt (600Ω); ±2.0%rdg±3dgt (6.000kΩ)Continuity buzzer 600Ω (Buzzer sounds below 90Ω)Conductor size φ33mm max.Applicable standards IEC 61010-1 CAT IV 300V, CAT III 600V, Pollution degree 2IEC 61010-031, IEC 61010-2-032, IEC 61010-2-033,IEC 61326-2-2(EMC), IEC 60529 IP40, EN 50581(RoHS)Power source R03/LR03 (AAA) (1.5V) × 2Continuous measuring time Approx.170 hours (when R03 is used)(Auto power save approx. 10 minutes)Dimensions 204(L) × 81(W) × 36(D)mmWeight 220g Approx. (including batteries)Included Accessories 7066A (Test leads)9079 (Carrying case)R03 (AAA) × 2, Instruction ManualPicture: Kyoritsu KEW2007R Digital AC Clamp MeterThe Kyoritsu KEW2007R Digital AC Clamp Meter measures AC without breaking the circuit. It checks voltage levels and tests continuity. Users can assess frequency and perform diode tests. The meter features data hold and backlight for easy reading. It ensures safety with its robust design and compliance with safety standards.The Kyoritsu KEW2007R Digital AC Clamp Meter allows technicians to measure in tight spaces. It captures peak current for accurate readings. Users can record measurements with the data hold function.
