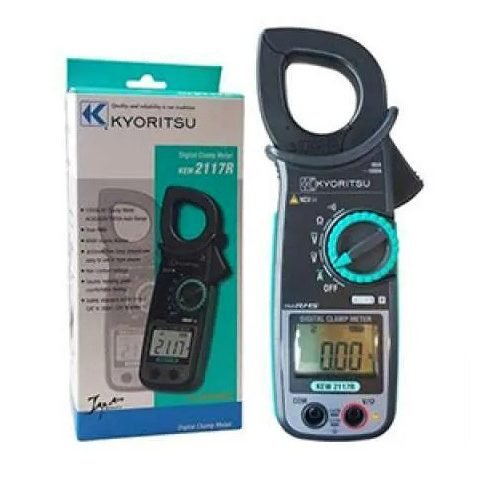

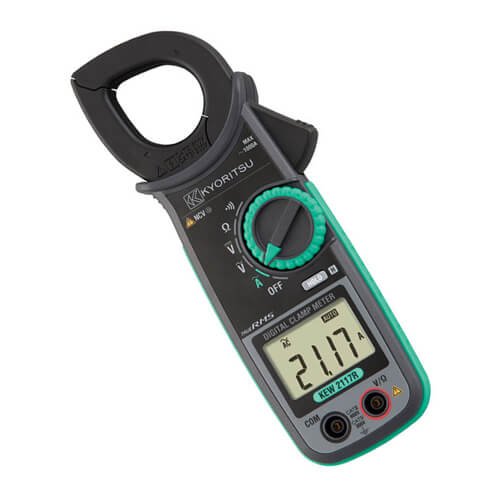

Kyoritsu Digital AC Clamp Meter KEW2117R

Kyoritsu Brand Digital AC Clamp Meter KEW2117R is a perfect portable clamp meter for electric and electronics professional.Fully Safety jawThe ergonomic over-molded body gives convenient one-hand operationLarge easy-to-read display with 0.01A resolutionAccurate reading with True RMS60/600/1000A auto-rangingLong battery lifeSafety StandardIEC 61010-1 CAT IV 300V / CAT III 600VClick to Know MoreSpecifications of Kyoritsu Digital AC Clamp Meter KEW2117R:AC A60.00/600.0/1000A (Auto-ranging) ±1.5%rdg±4dgt [45 – 65Hz] ±2.0%rdg±5dgt [40 – 1kHz]AC V60.00/600.0V (Auto-ranging) ±1.0%rdg±2dgt [45 – 65Hz] (600V) ±1.5%rdg±4dgt [40 – 1kHz] (60/600V)DC V60.00/600.0V (Auto-ranging) ±1.0%rdg±3dgt (60V) ±1.2%rdg±3dgt (600V)Ω600.0Ω/6.000/60.00/600.0kΩ (Auto-ranging) ±1.0%rdg±5dgt (600Ω) ±2.0%rdg±3dgt (6/60/600kΩ)Continuity buzzer600Ω(Buzzer sounds below 90Ω)Conductor sizeØ33mm max.Applicable standardsIEC 61010-1 CAT IV 300V, CAT III 600V Pollution degree 2 IEC 61010-031, IEC 61010-2-032, IEC 61010-2-033, IEC 61326-2-2(EMC), IEC 60529 IP 40, EN50581(RoHS)Power sourceR03/LR03 (AAA) (1.5V) × 2Continuous measuring timeApprox.170 hours (When R3 is used)(NCV_LED:off) (Auto power save approx. 10 minutes)Dimensions204(L) × 81(W) × 36(D)mmWeight220g Approx. (including batteries)Included Accessories7066A (Test leads) 9079 (Carrying case) R03 (AAA) × 2, Instruction Manual
