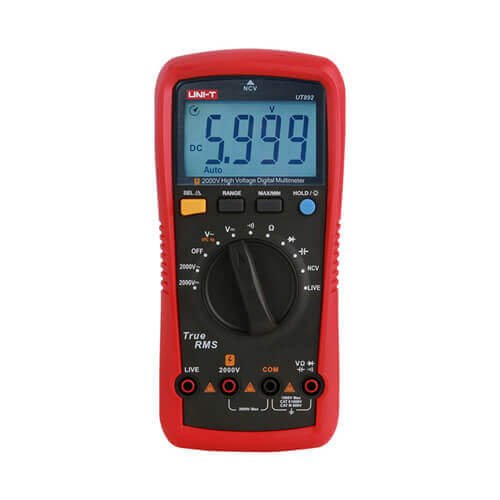

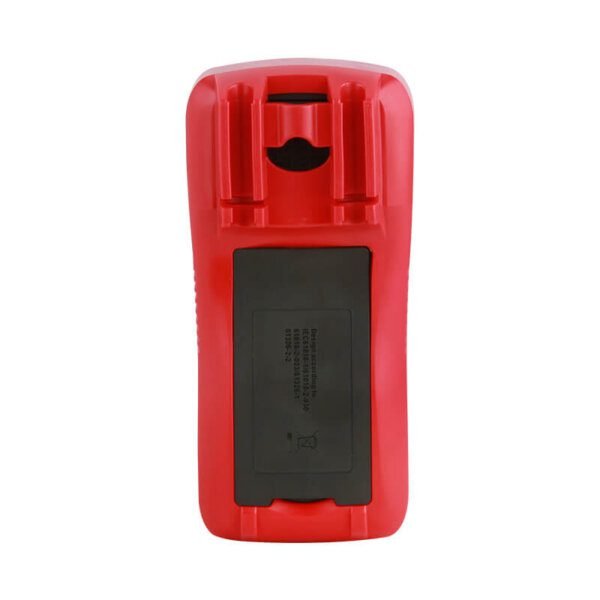

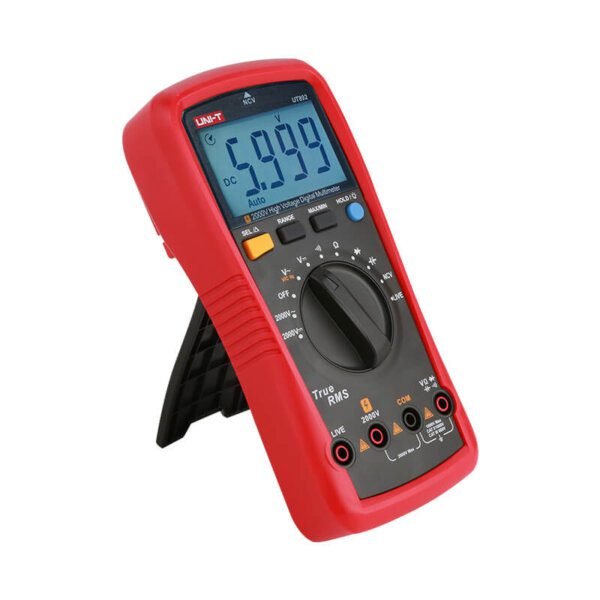

UT892 Digital High Voltage Multimeter provides AC/DC voltage measurement up to 2000V with full range overload protection. The specially designed 2000V input terminal and the indication for test leads allow users to take electrical measurements safely and efficiently.This meter features VFC mode for accurate measurements on variable frequency motor drives and noisy devices. The built-in NCV helps users detect the presence of live voltage without contacting any metal conductor, and the LIVE test can identify the live wire with a single test lead. UT892 has a removable rubber holster that can hold test probes for one-handed operation.Features of UT892 2000V AC/DC Digital High Voltage Multimeter6000 counts True RMS2000V AC/DC voltage measurementVFC 600V voltage measurementLIVE test60MΩ resistance/60mF capacitance10kHz frequency measurementTest lead indicationBacklightNCVCAT II 1000V/CAT III 600VSpecifications of UT892 2000V AC/DC Digital High Voltage Multimeter:SpecificationsRangeUT892DC voltage (V)6.000V/60.00V/600.0V/1000V/2000V±(0.5% 3)AC voltage (V)6.000V/60.00V/600.0V/1000V/2000V±(1.0% 3)Variable frequency voltage (VFC)600V±(5%)Frequency (Hz)10Hz~10kHz±(0.5% 2)Resistance (Ω)600.0Ω/6.000kΩ/60.00kΩ/6.000MΩ/60.00MΩ±(0.5% 5)Capacitance (F)60.00nF/600.0nF~600.0μF/6000μF/60mF±(3.0% 10)FeaturesDisplay counts6000Auto/manual range√NCV√LIVE test√Diode√Continuity√Low battery indication≤ Approximately 2.5V√Data hold√Max/Min√Relative mode√Auto power offApproximately 15 minutes√Backlight√Safety ratingCAT II 1000V/CAT III 600V√General CharacteristicsPowerAA 1.5V x2Product ColorRed GrayProduct net weight350g (Including batteries)Product size187*88*56mmStandard accessoriesEnglish manual, test leads, batteries.Standard individual packingGift box
