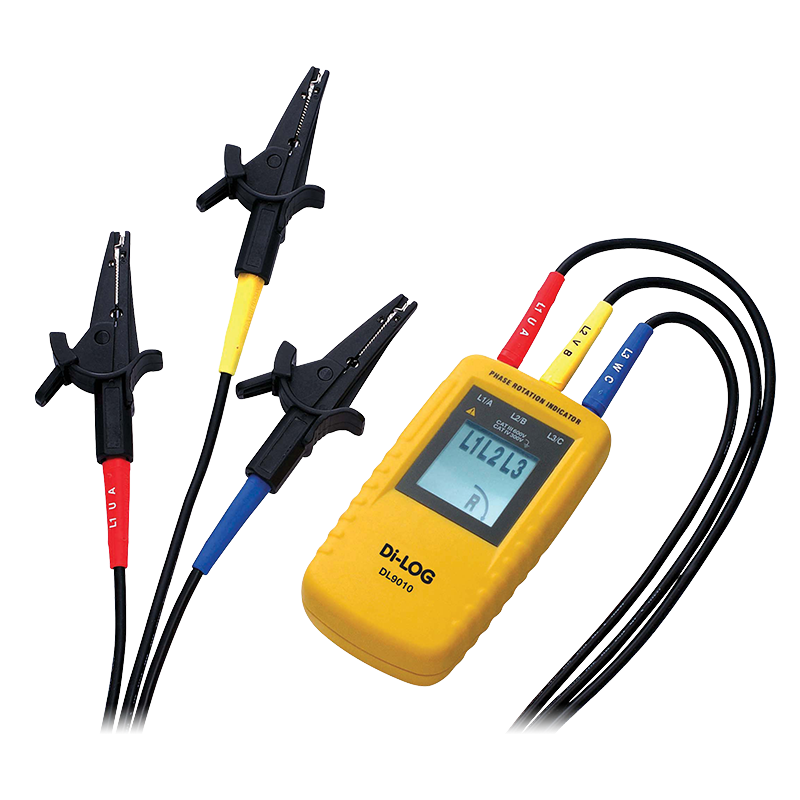

DL9010N Phase Rotation Tester Phase Rotation Tester Home > Products > Phase Rotation Testers > DL9010N Phase Rotation Tester DL9010N Phase Rotation Tester Phase Rotation Tester The DL9010N is a hand held phase rotation indicator. The battery powered instrument is designed to detect the phase rotation of three phase systems and to determine motor rotation direction. Purpose made for commercial and industrial environments, the DL9010N provides rapid indication of 3 phase rotation using test leads supplied. Features; Indicates presence of individual phase via LCD display Swift determination of phase rotation via LED Voltage and frequency range suitable for all industrial applications No battery required Specifications MeasurementRange Voltage Range40 – 690 V AC Current pickup1mA Nominal test current (per phase)1mA Frequency range15 – 400 Hz Over voltage categoryCAT III 600 V Protection levelIP40 Electrical SafetyIEC 61010, EN61010; IEC 61557-7 Power supplyFrom mains supply Dimensions128 x 68 x 30 mm Weight185g Downloads DL9010N Instruction Manual DL9010N Specification Sheet Trade Price: £152.00 all prices exclude VAT Related Products DL9020N Phase & Motor Rotation Meter
