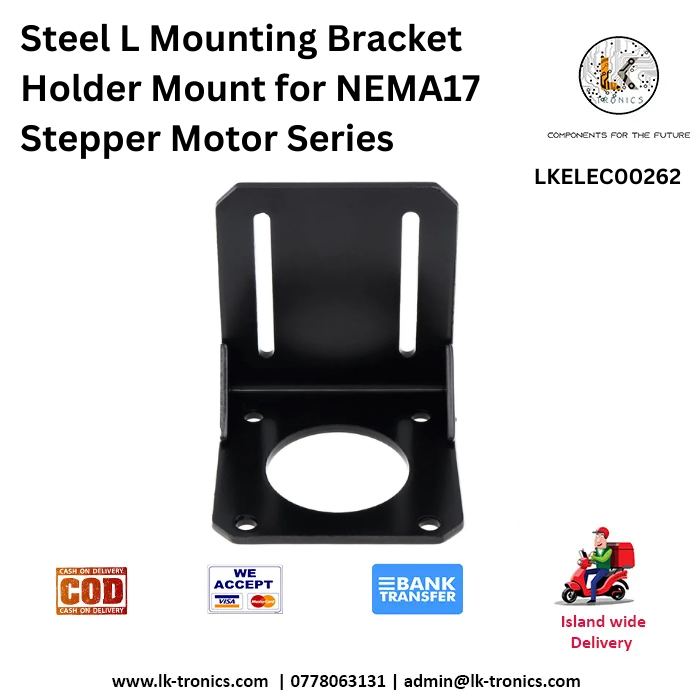

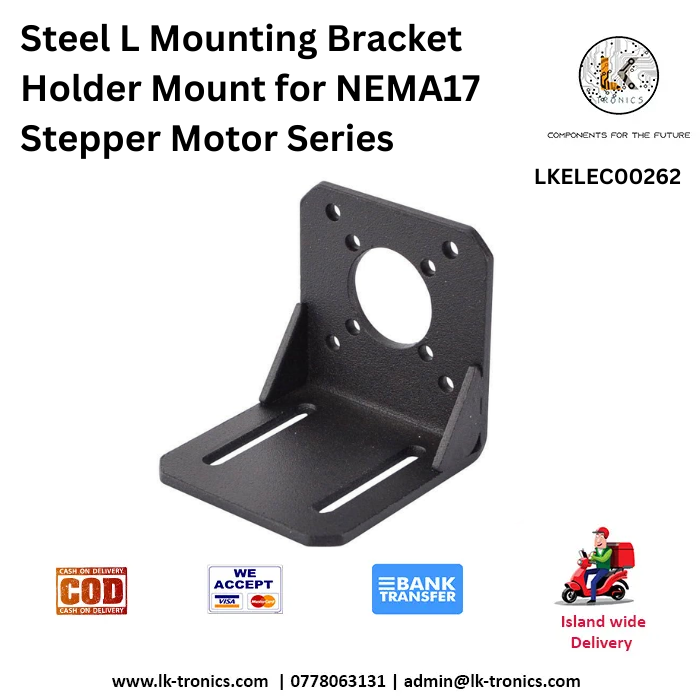

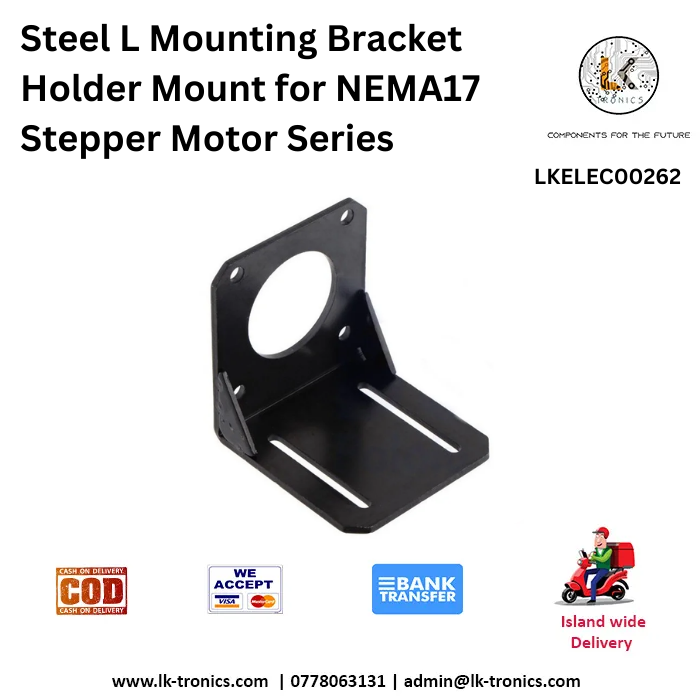

Steel L-Mounting Bracket | Holder for NEMA17 Stepper Motors

Steel L-Mounting Bracket | Holder for NEMA17 Stepper MotorsThe Steel L-Mounting Bracket is a durable and precise solution for securely mounting NEMA17 stepper motors in CNC machines, robotics, 3D printers, and other mechanical applications. Made from high-quality steel, this bracket ensures stability and alignment for smooth and reliable motor performance. Easy to install and compatible with various setups, it’s the perfect choice for professional and DIY projectsMaterial Specifications:Material Type: High-strength steelSurface Finish: Powder-coated or black oxide finish for corrosion resistanceThickness: 3 mm (approx.) to ensure rigidity and durabilityCompatibility:Motor Type: NEMA17 Stepper MotorsMounting Hole Compatibility: Standard NEMA17 mounting dimensionsHole Pattern: 31 mm x 31 mmScrew Hole Diameter: 4 mm (designed for M3 or M4 screws)Structural Dimensions:Bracket Dimensions:Height: 50 mmWidth: 42 mmLength: 42 mmL-Shape Design: Offers 90-degree mounting flexibility for horizontal or vertical positioningBase Plate Dimensions:Width: 42 mmLength: 50 mmBase hole pattern aligns with industry-standard profiles for secure mountingWeight: Approximately 100 gramsDesign Features:Pre-drilled Holes:Accurate alignment with NEMA17 motor faceplate for easy installationAdditional base holes for secure mounting to frames, enclosures, or workbenchesReinforced Corners:Strengthened L-bracket construction prevents bending under loadSlots for Adjustment:Elongated slots in the base to allow fine-tuned adjustments for alignment and tensioningLoad Capacity:Static Load: Designed to support up to 5 kgDynamic Load: Withstands the operational vibrations and torque of a NEMA17 stepper motorApplication Scenarios:CNC machines3D printersRoboticsAutomation equipmentOther stepper motor-driven mechanical systemsVISIT OUR FACEBOOK PAGE FOR MORE INFO | MORE PRODUCT IN OUR SHOP SKU: LKELEC00262 Categories: CNC, Electronics accessories, Robots and DIY Kits
