PIR Mini Sensor

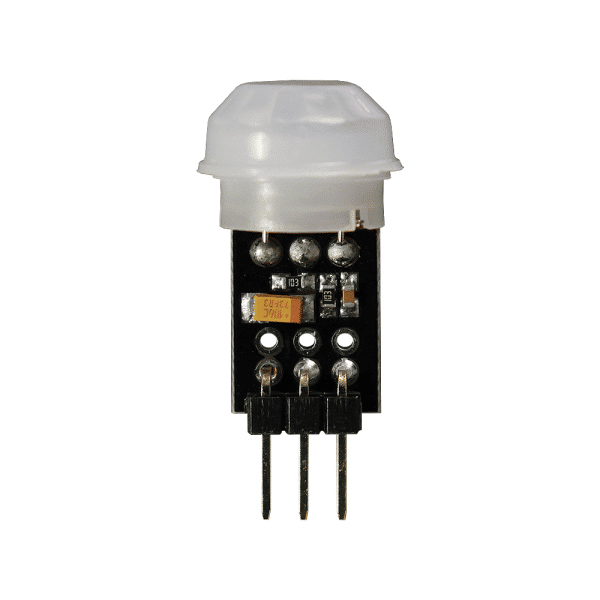

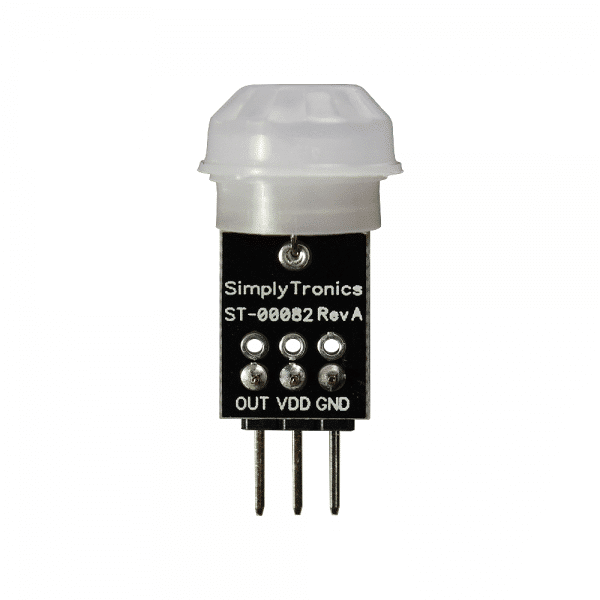

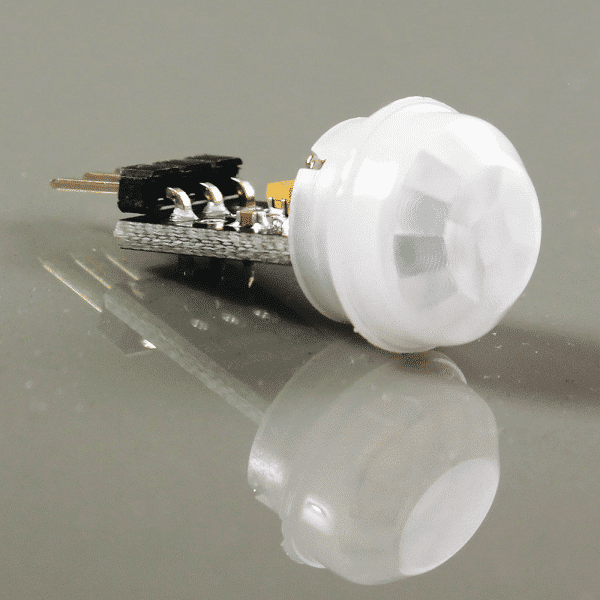

Product Description This product is discontinued. PIR Mini Sensor Overview: Do you have a big idea that needs a small motion sensor? The PIR Mini Sensor’s compact form factor is ideal for small-scale projects, and those where the electronics need to be hidden or protected.  The narrow, vertically oriented board can slip through a hole in an enclosure to hide and protect the electronics, leaving only the small lens visible on the outside. The PIR Mini Sensor detects motion up to 12 feet (3.65 meters) away. Like the other passive infrared sensors we carry, the PIR Mini contains a pyroelectric device that senses and responds to changes in the infrared levels emitted by nearby objects. Key Features: Detects motion up to 12 feet (3.65 meters) away 2.7 to 6 VDC supply voltage range supports both 3.3 and 5 V microcontrollers Simple active-high output signal makes it easy to use in microcontroller projects 3-pin SIP header fits an extension cable or plugs directly into a breadboard Application Ideas: Animated props Alarm systems Responsive lighting PIR Mini Sensor Details: Range: Up to 12 ft (3.65 m) Detection Angle: 100° Recommended bit for mounting hole: 7/16″ or 11 mm Voltage requirements: 2.7 to 6.0 VDC* Current requirements: 290 µA @ 3 VDC, 3250 µA @ 5 VDC Communication: Single-bit high/low output Dimensions: 1.16 x 0.49 x 0.49 in (29.5 x 12.5 x 12.5 mm) Operating temperature range: 32 to 122 °F (0 to 50 °C) NOTE: Rev A of this sensor supported a 3-15 VDC input voltage range. Rev B does not. Check your sensor and project voltage accordingly.
