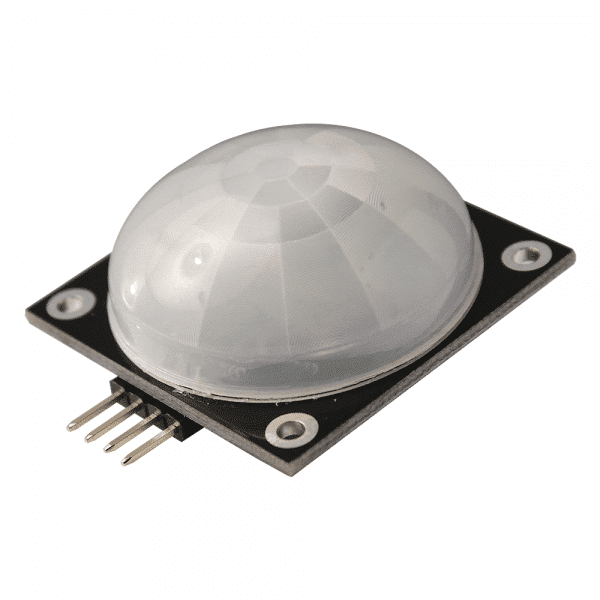

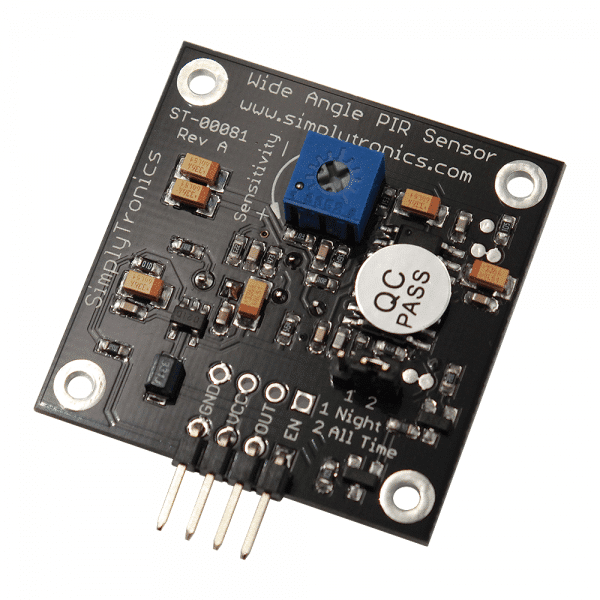

Product Description This product is discontinued. We carry other PIR sensor modules, like #555-28027 Wide Angle PIR Sensor Overview: Similar in functionality to our original PIR Sensor with LED Signal (#555-28027), the Wide Angle PIR Sensor features a larger detection angle of 180˚. This makes it ideal in applications where users need to track movements across a large, open area. The Wide Angle PIR Sensor contains a pyroelectric device that detects motion by sensing changes in the infrared levels emitted by surrounding objects. When motion is detected, onboard LEDs light up its dome as a visual activation signal, and the module outputs a high signal on its output pin. Key Features: 180˚ detection angle for widespread motion detection LEDs light up the dome for visual signal of sensor activation Typically detects people up to 30 ft away User-selectable “night-time mode” for detecting motion in decreased lighting conditions Adjustable sensitivity to tune for different operating conditions 4-pin SIP package perfect for breadboard-friendly projects Small size and mounting holes for easy concealment Application Ideas: Motion-activated nightlight Alarm system Holiday animated props Wide Angle PIR Sensor Specifications: Voltage requirements: 3.0 to 6.0 VDC Current requirements: 150 uA idle, 3 mA active (no load) Communication: Single-bit high/low output Dimensions: 1.42 x 1.42 x 0.79 in (36.0 x 36.0 x 20.2 mm) Operating temperature range: 32 to 122 °F (0 to 50 °C) RoHS CE and UKCA Declarations of Conformity are available under the Downloads tab.
