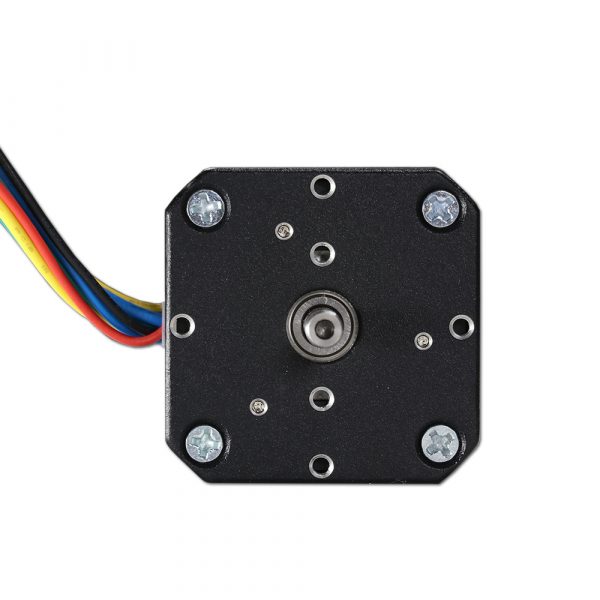

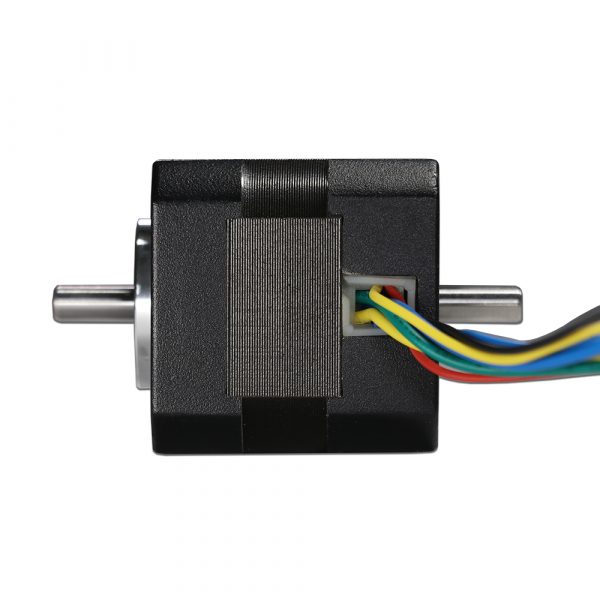

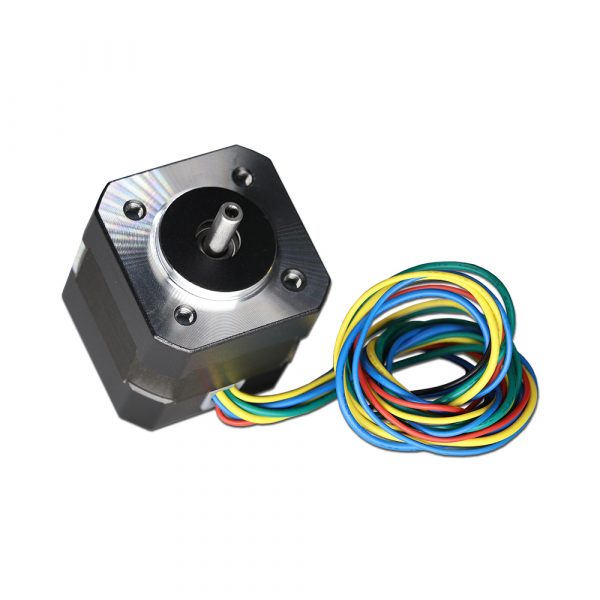

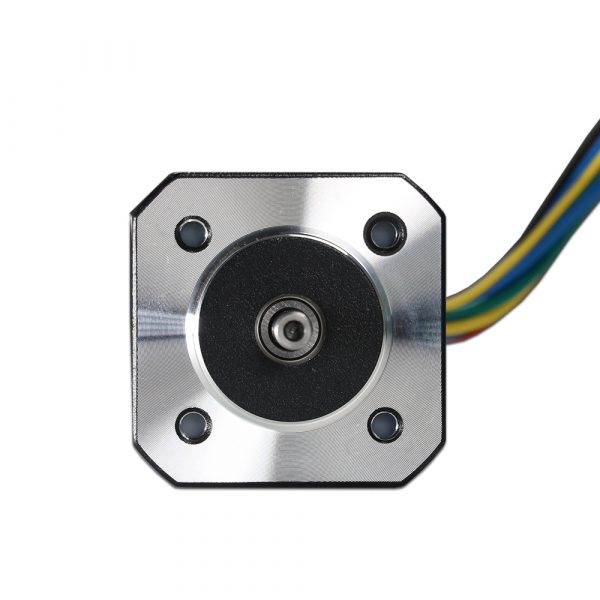

Product Description Discontinued. Motor, BLDC, 24V, 4000 RPM Overview: 4000 RPM is a compact, brushless, direct-current motor for your microcontroller projects. It is compatible with the Universal Motor Driver P2 Add-on Board. Specifications: Number of poles: 8 Phase to phase resistance: 1.8 ohms Nominal voltage 24 VDC No load speed: 6800 /- 10 rpm No load current: 0.4 amps max Rated torque: 0.0625 Nm Rated speed: 4000 /- 10 rpm Output power: 26 W Back EMF constant: 3.3 V/rpm Torque constant: 0.034 Nm/A Insulation class: B Dimensions: case 42.2 x 42.2 x 41 mm, overall length 78 mm
