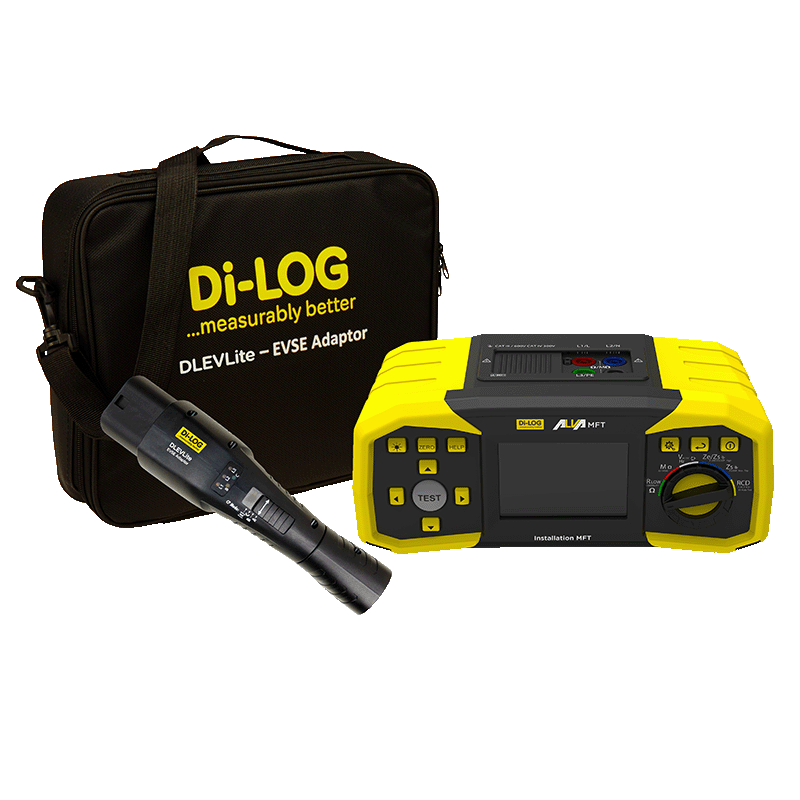

ALVA MFT EV - Installation Multifunction Tester EV Kit Automation | Innovation | Affordability Home > Products > LATEST EV Test Equipment Range > ALVA MFT EV - Installation Multifunction Tester EV Kit ALVA MFT EV - Installation Multifunction Tester EV Kit Di-LOG ALVA MFT EV Kit – Complete EV Testing Solution Click here or the above image to discover what you could claim once registering your ALVA MFT EV Kit The Di-LOG ALVA EV Installation Multifunction Tester Kit combines the trusted accuracy of the ALVA Multifunction Tester (MFT) with the targeted EV capabilities of the DLEVLite Type 1 EVSE Adaptor, delivering a compact, high-performance solution for electric vehicle charge point testing. Ideal for contractors and EV specialists, this kit enables fast, reliable, and fully compliant testing of Mode 3 EV installations in line with 18th Edition requirements. At the heart of the kit is the Di-LOG ALVA MFT, a next-generation multifunction tester fully compliant with BS EN 61557. It features a high-resolution full-colour TFT screen, user-interactive pass/fail limit setting, and testing support for RCD types AC, A, B, B , EV and F. With automated Continuity & Earth Loop Auto Start, a dual display, and intelligent 2/3 wire loop detection, it simplifies daily testing routines with greater speed and precision. The MFT also includes a variable RDC test feature and 6mA RDC-PD/MD testing, enabling effective verification of EVSE charger safety. Inbuilt fuse tables provide immediate access to the maximum permitted Zs Loop values—essential for ensuring safe Earth Loop Impedance measurements in real-world installations. Di-LOG ALVA EV Installation Multifunction Tester Kit Key Features Full-Colour TFT Display: Provides a high-contrast screen with interactive pass/fail settings for enhanced user experience. Comprehensive RCD Testing: Supports AC, A, B, B , EV, and F types, ensuring compatibility with a wide range of installations, including EV charge points. Automated Continuity & Earth Loop Auto Start: Simplifies testing with a secondary display for recorded results, improving efficiency Advanced Loop Testing with Intelligent Detection & Xpert Loop Technology: The ALVA MFT Pro EV features Intelligent 2/3 Wire High-Current Loop Detection, which automatically identifies whether a 2-wire or 3-wire Loop/PSCC measurement is being conducted, eliminating manual selection errors. Combined with RCD-LOC Dynamic Non-Trip Loop Testing, this latest Xpert Loop Technology delivers high-accuracy low-current Earth Loop measurements with an adjustable test current feature, optimising test precision based on your RCD current. This ensures reliable loop impedance testing while maintaining maximum safety and accuracy in all environments. Insulation Test with Bargraph: with selectable voltages of 50, 100V, 250V, 500V & 1000V with adjustable pass/fail values 6mA EVSE Testing: Simple EV Charger Safety Verification with a 6mA RDC-PD/MD Testing as standard Integrated DLEVLite Charge Point Adaptor: Enables full functional testing of Mode 3 EV charging stations, ensuring charge point performance and safety. Control Pilot & Protective Earth Testing: DLEVLite Verifies Control Pilot (CP) status, detects CP Error “E” for added safety in EV charger installations. Rechargeable Capability (Optional Kit Required): The ALVA MFT includes an inbuilt charging facility when used with the optional NiMH battery and charge lead kit, allowing convenient charging and longer operation without regular battery changes. On-screen Help: a visual aid to assist test lead configuration and instruction Click here to register your interest       VIEW ALVA MFT KEY FEATURES The ALVA MFT Key Features • RCD-LOC Dynamic Xpert Loop Technology • Auto Start Loop, PSC/PFC & Continuity • Auto RCD Test with AC/A, EV, B, B , F & Selective RCDs • 1000V Insulation Test • TFT LCD Colour Screen • Optional Remote Test Probe & NiMH Rechargeable Batteries • Hard Shell Carry Case Visit the ALVA webpage for more information on the Complete ALVA Range: ALVA Series MFT and EV Range Product Page. AUTO START LOOP & CONTINUITY Hands free testing with the Auto Start Earth Loop, PSC and Continuity Test This handy feature streamlines testing without the need to press the test button. In addition, the ALVA MFT has a secondary display for recorded results, improving efficiency and workflow Visit the product webpage for more information on the ALVA Series MFT click here to view the ALVA Series Product Page. 6mA DC TESTING WITH THE ALVA MFT Comprehensive RCD Testing including 6mA EV! The ALVA MFT Supports all major RCD types, including AC, A, B, B , EV, F, and 6mA RDC-PD/MD, catering to a wide range of installations, including EV chargers. Visit the product webpage for more information click here to visit the ALVA Series Product Page. NEW DYNAMIC EARTH LOOP TESTING Dynamic Non-Trip Loop Earth Loop Testing RCD-LOC , our latest Xpert Loop Technology delivers high accuracy low-current Earth Loop with an adjustable test current feature to optimise the test accuracy based on your RCD current. Visit the product webpage for more information click here to view tha ALVA Series Product Page. Paired with the Di-LOG DLEVLite adaptor, the ALVA MFT EV kit allows electricians to simulate a vehicle connection at Type 1 EVSE sockets, verifying Control Pilot (CP) signal integrity, Protective Earth (PE) continuity, and simulating fault conditions such as CP Error E or PE loss. Lightweight and easy to deploy, the adaptor adds flexibility and functionality to on-site testing, making it a must-have for EV charger commissioning and troubleshooting. Engineered for speed, simplicity, and full regulatory compliance, the ALVA MFT EV kit delivers powerful all-in-one functionality for modern electrical professionals. Upgrade your testing experience with the Di-LOG ALVA MFT EV—precision, reliability, and compliance in one powerful device.   Specifications ALVA MFT Specifications Measurement RangeResolutionBasic Accuracy Voltage & Frequency AC Voltage TRMS 0V - 550V1V±2% ± 2 dgts DC Voltage 0V - 550V1V±2% ± 2 dgts Frequency 10 - 499Hz0.1Hz±0.2% ± 1 dgts Phase Rotation 0V - 550V Measurement range BS EN 61557-7Right:1-2-3 ; Left: 3-2-1 Continuity Low R (200mA)0.01Ω - 19.99Ω 20.1Ω - 99.9Ω 100Ω - 1999Ω±3% ± 3 dgts ±5% ± 5 dgts ±5% ± 5 dgts Insulation 50V, 100V & 250V (50kΩ-80MΩ @ 50V | 100kΩ-199.9MΩ @ 100V & 250V) 19.99MΩ - 99.99MΩ 20.0MΩ - >199.9MΩ<br /> </td><td class="column-3">±5% ± 3 dgts<br /> <br /> ±5% ± 3 dgts<br /> <br /> ±5% ± 5 dgts</td> </tr> <tr class="row-13"> <td class="column-1">500V & 1000V<br /> <h6>(500kΩ-199.9MΩ @ 500 & 1000V)</h6></td><td class="column-2"><0.01MΩ - 19.999MΩ199.9MΩ ±5% ± 3 dgts ±5% ± 3 dgts ±5% ± 5 dgts 500V & 1000V (500kΩ-199.9MΩ @ 500 & 1000V) 19.99MΩ - 99.99MΩ199.9MΩ999MΩ ±5% ± 3 dgts ±5% ± 3 dgts ±5% ± 5 dgts ±10% Line Impedance (L-L | L-N) 0.20Ω - 9999Ω Measurement range BS EN 61557-3 is 0.25Ω - 1999Ω0.01Ω - 19.99Ω 20.0Ω - 99.9Ω 100Ω - 9999Ω±5% ± 5 dgts Perspective Short Circuit Current (PSC) 0.00A - 19.99A 20.0A - 99.9A 100A - 999A 1.00kA - 9.99kA 10.0kA - 100.0kA0.01A 0.1A 1A 0.01kA 0.1kACalculated value taking into account the Earth Loop Accuracy of ±5% ± 5 dgts Earth Fault Loop Impedance (Z-loop L-PE High Current) 0.20Ω - 9999Ω Measurement range BS EN 61557-3 is 0.25Ω - 1999Ω0.01Ω - 19.99Ω 20.0Ω - 99.9Ω 100Ω - 9999Ω±5% ± 5 dgts Perspective Earth Fault Current (PFC - High Current) 0.00A - 19.99A 20.0A - 99.9A 100A - 999A 1.00kA - 9.99kA 10.0kA - 100.0kA0.01A 0.1A 1A 0.01kA 0.1kACalculated value taking into account the Earth Loop Accuracy of ±5% ± 5 dgts Earth Fault Loop Impedance (Z-Loop (Zs) Non-Trip) 0.40Ω - 19.99Ω 20.0Ω - 9999Ω Measurement range BS EN 61557 is 0.75Ω - 1999Ω0.01Ω - 19.99Ω 20.0Ω - 99.9Ω 100Ω - 9999Ω±5% ± 10 dgts ±10% Perspective Earth Fault Current (PFC-Non-Trip) 0.00A - 19.99A 20.0A - 99.9A 100A - 999A 1.00kA - 9.99kA 10.0kA - 100.0kA0.01A 0.1A 1A 0.01kA 0.1kACalculated value taking into account the Earth Loop Accuracy of ±5% ± 5 dgts RCD Tripping Time 0.0 - 500.0ms (Measurement range BS EN 61557-6)0.1ms±3ms Test Current - ½ x I∆n | 1 x I∆n | 2x I∆n | 5 x I∆n RCD Types- AC | A | B | B | EV | F | S (Selective - Time Delayed) RCD Tripping Current 0.0 - 500.0ms (Measurement range BS EN 61557-6)0.1ms±3ms 0.2 x IΔn - 1.1 IΔn (AC type) 0.2 x IΔn - 1.5 IΔn (A type, IΔn ≧30mA ) 0.2 x IΔn - 2.2 IΔn (A type, IΔn ≧10mA ) 0.2 x IΔn - 2.2 IΔn (B type)0.05 x IΔn±0.1 x IΔn Nominal RCD Currents- 6mA | 10mA | 30mA | 100mA | 300mA | 500mA Contact Voltage 3.0V - 9.9V 10.0V - 99.9V0.1V-0/ 10% ±10 dgts General Information EN61010 Overvoltage Safety Rating CAT III 600VCAT IV 300V Display480 x 320 TFTLCD Screen Power supply6 x AA Alkaline batteries (included) Recharge OptionALVA Recharge Pack A available Dimensions250 x 107 x 135 mm Weight1300g (Excluding batteries) Downloads ALVA Series MFT Quick Start Guide ALVA Series Range Brochure ALVA MFT Specification Sheet Download ALVA Series Media Pack Trade Price: £1799.00 MSRP: £874.00 all prices exclude VAT Related Products   ALVA MFT Pro - Installation Multifunction Tester   ALVA MFT Pro EV - Installation Multifunction Tester EV Kit   SmartWater® SmartTrace   ALVA MFT - Installation Multifunction Tester   DLEVLite EVSE Charge Station Adaptor
