Optical Infrared Water Liquid Level Sensor with Module

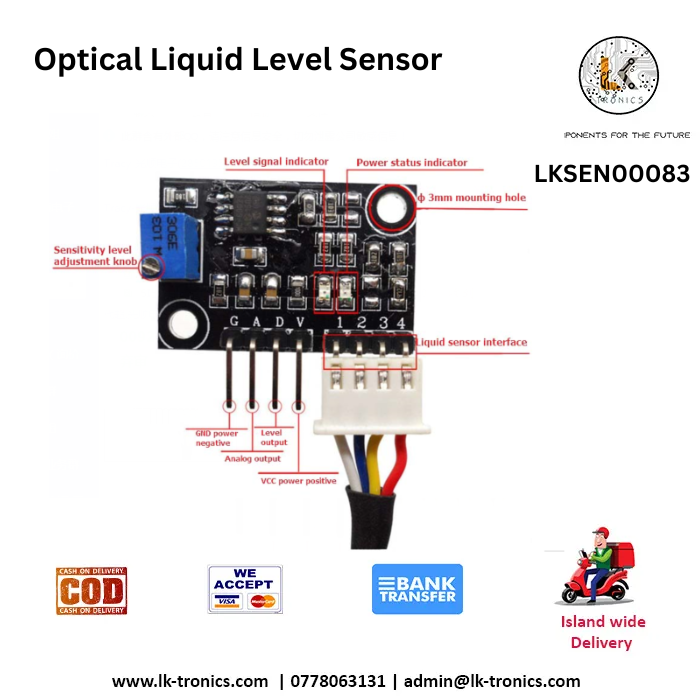

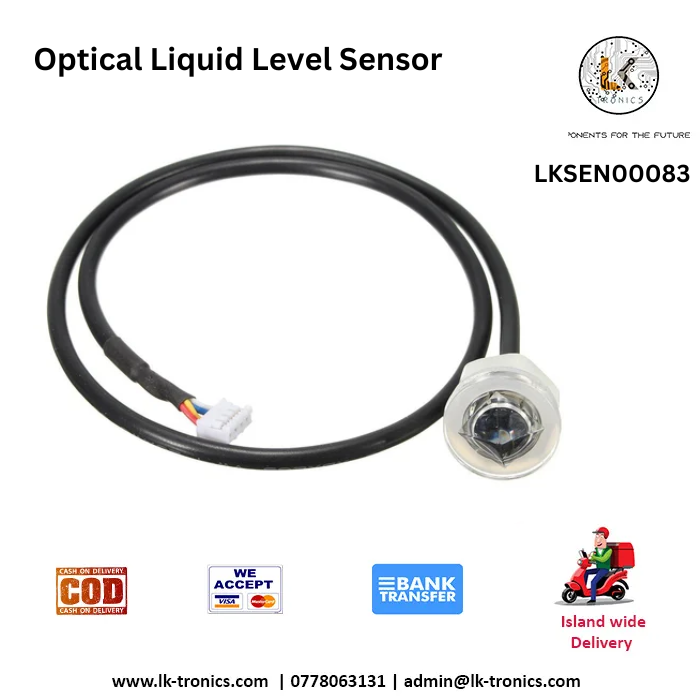

Optical Infrared Water Liquid Level Sensor with ModuleSpecificationsOptical Sensor CharacteristicsDetection Range: 0–10 mm (customizable per application)Wavelength: 850–950 nm (infrared light)Material: Polycarbonate or Glass (optical head)Light Source: Infrared LEDDetection Accuracy: ±1 mmViewing Angle: ≤15°Electrical ParametersOperating Voltage: 5 VDCCurrent Consumption: ≤15 mASignal Output:Type: Digital (High/Low) or Analog (0–5 V/4–20 mA)Interface: GPIO AnalogResponse Time: <10 msEnvironmental ParametersOperating Temperature: -20°C to 85°CStorage Temperature: -40°C to 100°CRelative Humidity: 0–95% (non-condensing)Ingress Protection: IP67 or IP68 (water and dust resistant)Module SpecificationsDimensions: 30 x 20 x 10 mm (module size)Weight: 20–50 gramsMounting Options: Screw holes or adhesive padsCommunication: Built-in signal amplifier and processing moduleSupported LiquidsCompatibility: Water (distilled, tap, etc.), oils, alcohol, and non-corrosive chemicals.Non-Compatible Liquids: Highly reflective or opaque liquids (consult the manufacturer for details).Applications:Industrial: Tank level monitoring, fluid dispensers, and chemical processing.Medical: IV fluid monitoring, laboratory equipment, and sterilizers.Automotive: Coolant, oil, and washer fluid detection.Consumer: Water cleaners, coffee machines, and home appliances. SKU: LKSEN00083 Categories: Bearing, Module, Sensors
