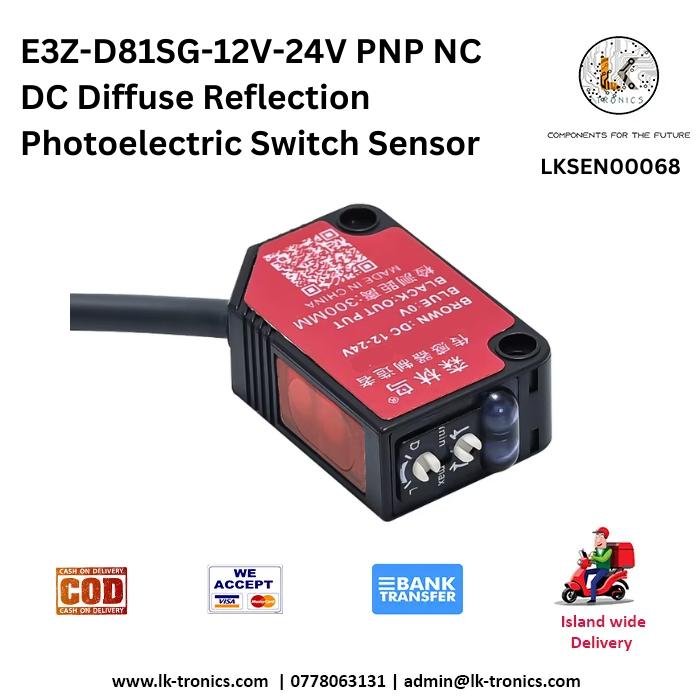

E3Z-D81SG Photoelectric Sensor PNP NC | Sri LankaE3Z-D81SG photoelectric sensor with PNP normally closed (NC) output. 12–24V DC diffuse reflection for object detection and automation in Sri Lanka.1. SpecificationsProduct Name: E3Z-D81SG Diffuse Reflection Photoelectric Switch SensorModel Number: E3Z-D81SGSensor Type: Diffuse Reflection Photoelectric SensorDetection Method: Diffuse ReflectionOutput Type: PNP, Normally Closed (NC)Power Supply Voltage: 12V – 24V DC2. Electrical SpecificationsOperating Voltage Range: 12V – 24V DCOutput Type: PNP (Open Collector Output)Output Configuration: Normally Closed (NC)Max Load Current: 100mA @ 24V DCResponse Time: ≤1msLeakage Current: ≤0.5mAVoltage Drop (Residual Voltage): ≤1.5V @ 100mA loadPower Consumption: ≤30mA3. Optical SpecificationsSensing Distance (Detection Range): 300mm (Depending on target reflectivity)Light Source (Emitter): Infrared LED (wavelength ~880nm)Beam Angle: ≤3°Sensing Target: Opaque, translucent, or semi-transparent objectsReflectivity Influence: Higher reflectivity materials improve the sensing range4. Mechanical & Physical SpecificationsHousing Material: Industrial-grade ABS / Polycarbonate (PC) PlasticLens Material: Acrylic / PolycarbonateDimensions: 50mm × 18mm × 10mm (Approx.)Weight: ~50gCable Length: 1.5m – 2m standard (customizable)Wire Connections:Brown (VCC) – Power Supply (12-24V DC)Blue (GND) – Ground (0V)Black (OUT) – Output Signal (PNP NC)5. Protection & Environmental FeaturesProtection Rating: IP67 (Dustproof & Waterproof)Shock & Vibration Resistance: IEC 60068-2-6 (10 – 55Hz, 1.5mm amplitude)Operating Temperature: -25°C to 70°CStorage Temperature: -40°C to 80°CHumidity: 35% – 85% RH (Non-condensing)Short-Circuit Protection: YesOverload Protection: YesReverse Polarity Protection: Yes6. Indicators & AdjustmentsLED Indicators:Power Indicator (Red LED) – Lights up when power is appliedOutput Indicator (Yellow LED) – Lights up when the sensor detects an objectSensitivity Adjustment: Manual Potentiometer (Optional in some models)7. Mounting & InstallationMounting Type: Bracket / Direct Screw MountingThread Size: M3 / M4 mounting holesInstallation Distance: Maintain proper spacing to avoid interference from nearby sensors8. Compatibility & ApplicationsCompatible Controllers:PLC (Programmable Logic Controllers)Microcontrollers (Arduino, ESP32, Raspberry Pi, STM32, etc.)Industrial Automation SystemsCommon Applications:Object Detection in Assembly LinesAutomated Conveyor Belt SystemsLiquid Level Sensing (Non-contact)Packaging & Labeling MachinesSecurity & Access Control SystemsCounting & Positioning in Industrial AutomationVISIT OUR FACEBOOK PAGE FOR MORE INFO | MORE PRODUCT IN OUR SHOP SKU: LKSEN00068 Category: Sensors
