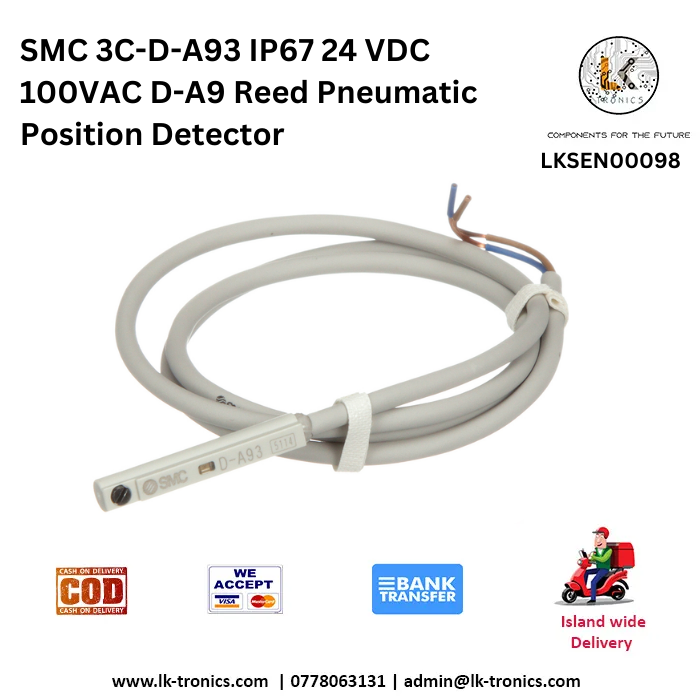

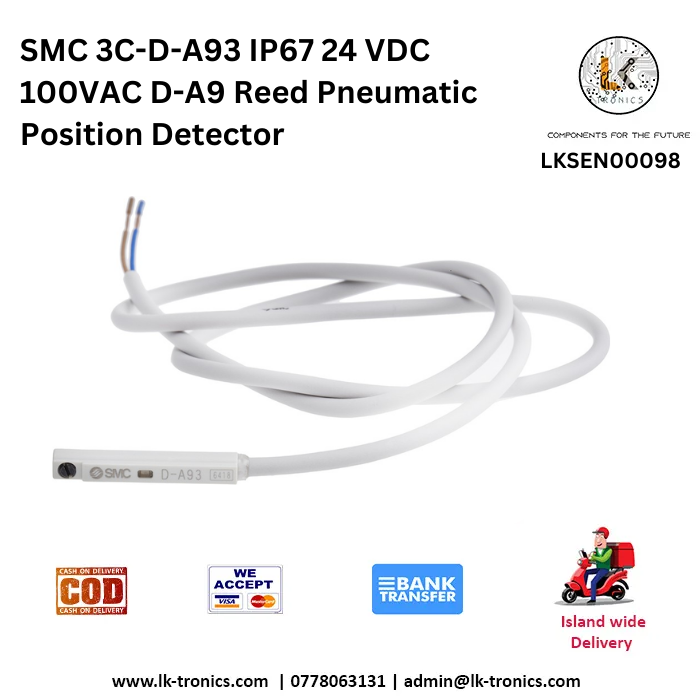

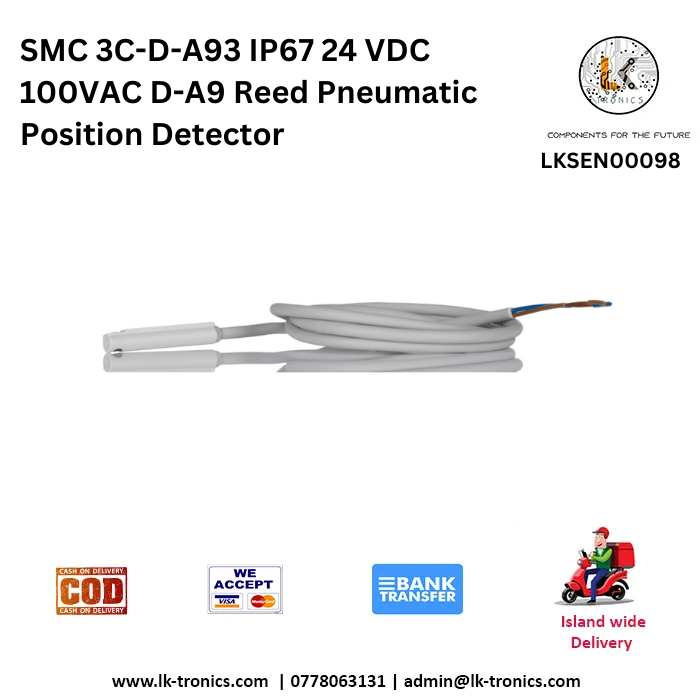

SMC 3C D-A93 Pneumatic Position Sensor | IP67 Reed Switch

SMC 3C D-A93 Pneumatic Position Sensor | IP67 Reed SwitchSpecificationsProduct Name: Reed Type Auto-Switch / Pneumatic Position SensorModel Number: 3C-D-A93Series: D-A9 SeriesSensor Type: Reed Switch (Magnetic proximity sensor)Mounting Type: Direct Mount (groove mount)Application: Detecting the position of a piston in pneumatic cylindersManufacturer: SMC Corporation (Japan)Electrical SpecificationsOperating Voltage Range:DC: 24 VDC (Nominal), 5–28 VDC (Range)AC: Up to 100 VAC (for limited usage, resistive load only)Max Load Current:DC Resistive Load: 40 mA maxAC Load (Non-inductive): 20 mA max (when used at 100 VAC)Internal Resistance:Reed Element: 1.2 Ω or lessLeakage Current: None (mechanical contact type)Voltage Drop: 2.4 V max at 20 mASwitching Time: ≤1.2 msContact SpecificationsSwitching Method: Reed contact (normally open)Contact Style: SPST-NO (Single Pole Single Throw – Normally Open)Output Type: 2-wire, non-polarizedProtection Circuit: None (external protection recommended for inductive loads)Mechanical SpecificationsDimensions:Length: ~28 mmWidth: ~4 mmHeight: ~6 mmCable Type:2-wire typeCable diameter: Ø2.7 mmStandard cable length: 0.5 m, 1 m, or 3 m (custom options available)Conductor cross-section: 0.1 mm² × 2 cores (AWG26)Mounting:Slot/groove mounting on SMC cylinders (C85, CJ2, C55, etc.)Secured using mounting screw or band depending on cylinder type Environmental RatingsEnclosure Rating: IP67 (IEC 60529)Dust-tightProtected against temporary immersion in water (up to 1 meter for 30 minutes)Ambient Temperature Range: -10°C to 60°CAmbient Humidity: 35%–85% RH (non-condensing)Vibration Resistance: 10–55 Hz, 1.5 mm amplitude, in XYZ directions for 2 hoursShock Resistance: 100 m/s² (10 G) in XYZ directions, 3 timesIndicator FunctionLED Indicator:Red LED illuminates when the sensor is actuated (magnet detectedVISIT OUR FACEBOOK PAGE FOR MORE INFO | MORE PRODUCT IN OUR SHOP SKU: LKSEN00098 Category: Sensors
