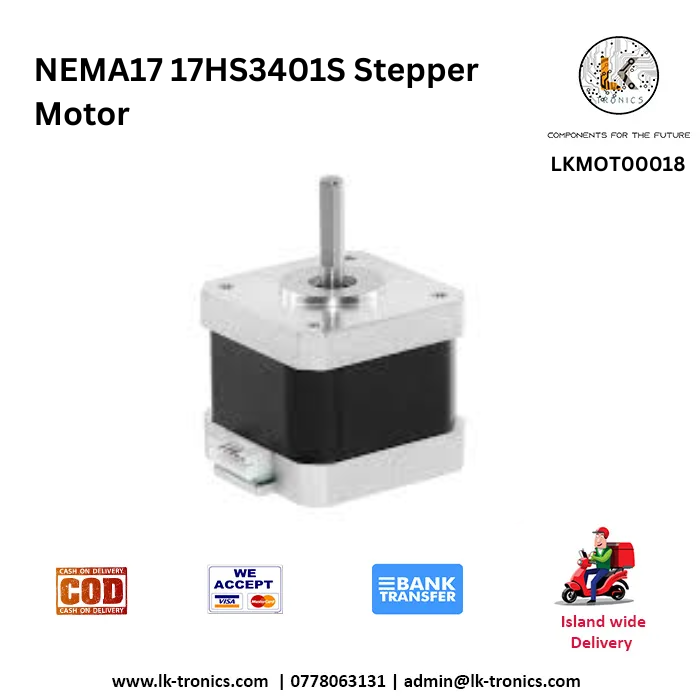

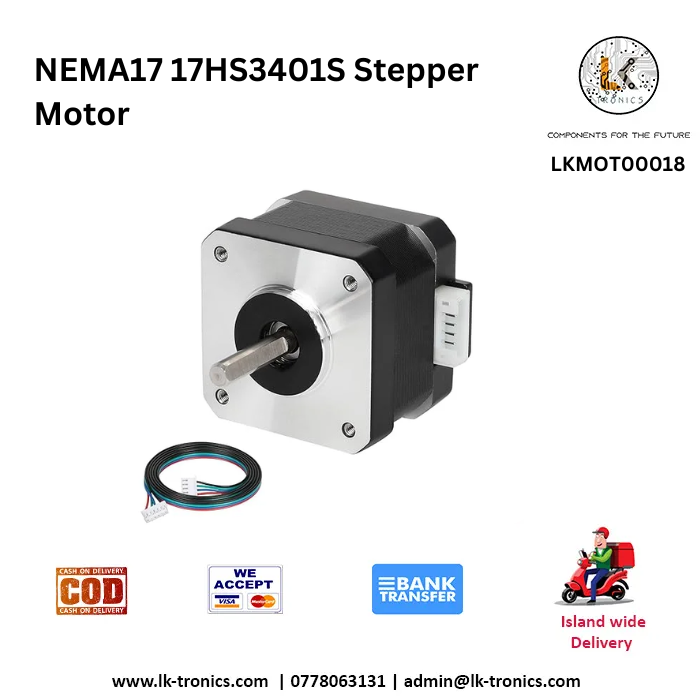

NEMA17 17HS3401S Stepper MotorThe NEMA17 17HS3401S Stepper Motor offers high precision and reliable performance with a 1.8-degree step angle. Ideal for 3D printers, CNC machines, and robotics, this motor provides high torque and smooth movement, making it a popular choice for precision control applications.Specifications:Step Angle: 1.8° per stepNumber of Phases: 2Rated Voltage: 2.5VCurrent per Phase: 1.7AResistance per Phase: 1.5 OhmsInductance per Phase: 3.2mH ± 20% (1kHz)Mechanical Specifications:Holding Torque: 45Ncm (450mNm or 63.74 oz-in)Rotor Inertia: 54g.cm²Number of Leads: 4 (Bipolar configuration)Lead Length: Typically 1 meter or 1.2 meters (can vary by manufacturer)Step Accuracy: ±5%Frame Size: NEMA 17 (42mm x 42mm)Body Length: 34mmShaft Diameter: 5mmShaft Length: 20mm (approx.)Mounting Holes: 4 holes spaced 31mm apart (center-to-center)Weight: Approx. 280gThermal & Environmental Specifications:Max Operating Temperature: 80°CInsulation Class: Class B (80°C max rise)Ambient Temperature Range: -20°C to 50°CInsulation Resistance: 100MΩ (500V DC)Dielectric Strength: 500V AC for 1 minuteWiring Configuration:Red – Phase A Blue – Phase A-Green – Phase B Black – Phase BDatasheet : 17HS NEMA17 Stepper MotorVISIT OUR FACEBOOK PAGE FOR MORE INFO | MORE PRODUCT IN OUR SHOP SKU: LKMOT00018 Categories: Motors, Stepper Motors Tags: Arduino, Arduino sensors, Stepper Motor Driver
