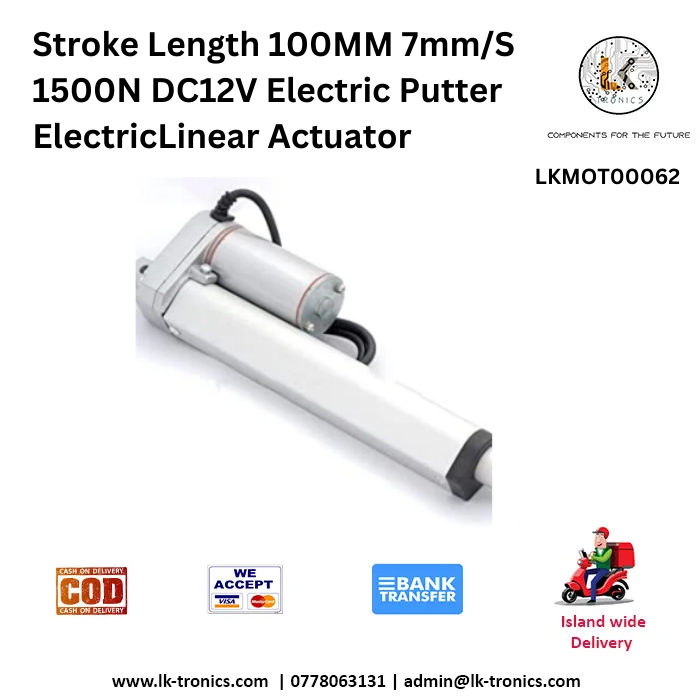

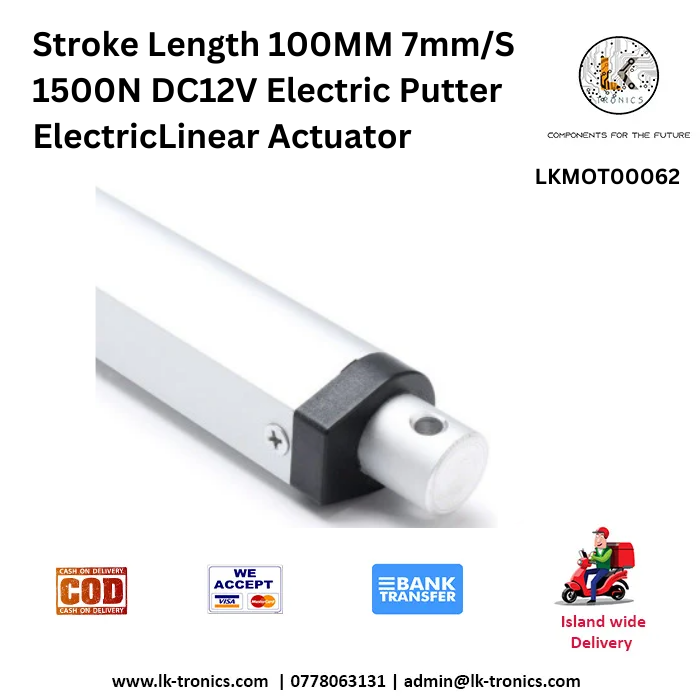

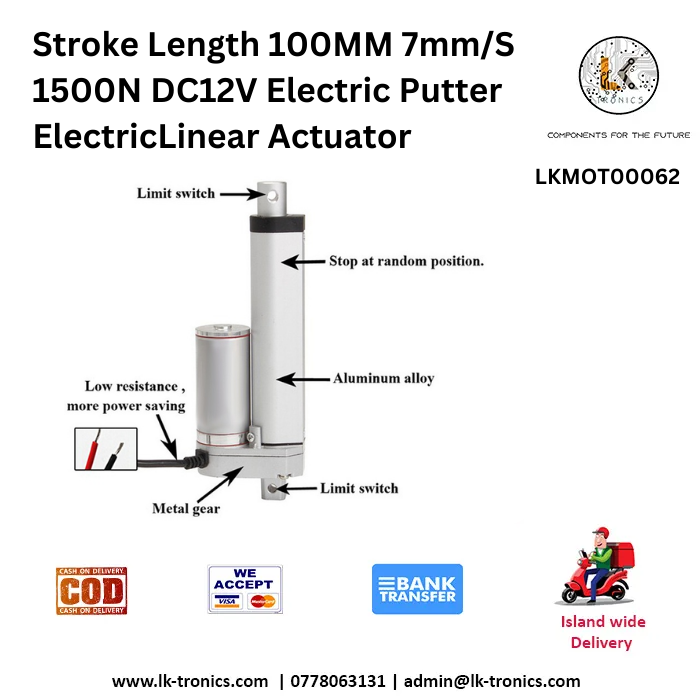

100mm Stroke Electric Linear Actuator | 1500N DC12V

100mm Stroke Electric Linear Actuator | 1500N DC12V Electric PutterTechnical Specifications:Input Voltage:DC 12VStroke Length:100mmSpeed:7mm/s (no load)Rated Thrust (Force):1500N (150 kg or approximately 330 lbs)Duty Cycle:20% (max 2 minutes continuous operation, then rest for 8 minutes)Protection Grade:IP54 (Dust and water-resistant for light splashes)Operating Temperature:-20°C to 65°CNoise Level:≤ 50 dBMaterial:Outer casing: Aluminum AlloyInternal components: Steel/AluminumMounting Type:Front and rear clevis brackets (standard mounting holes)Retracted Length:Stroke length (100mm) ~160mm body length = ~260mm total retracted lengthExtended Length:Retracted length Stroke (100mm) = ~360mm extended lengthRated Current:3A to 5A (depending on load)Load Capacity:Capable of operating at full load with 1500N thrustWire Length:Standard: 1 meter (customizable upon request)End Type:M8 or M10 mounting holes (depending on the design)Control Mode:Standard: Polarity reversal via a switch for extending/retractingCompatible with external controllers (e.g., relays, remote control systems)Lifespan:40,000 cycles under rated load conditionsElectric Linear Actuator Applications:Automotive components (e.g., RVs, adjustable car seats)Medical beds and chairsIndustrial machineryHome automation (windows, solar panel tilts, recliners)Agricultural equipment (e.g., harvesters, tractors)Furniture applications (e.g., standing desks, recliners)VISIT OUR FACEBOOK PAGE FOR MORE INFO | MORE PRODUCT IN OUR SHOP SKU: LKMOT00062 Categories: Actuator, Motors, Valve, WiFI, Wires
