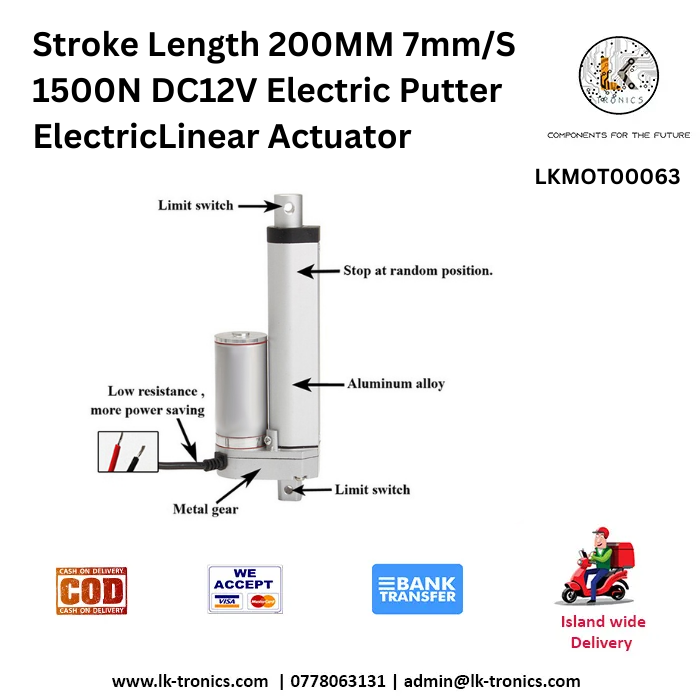

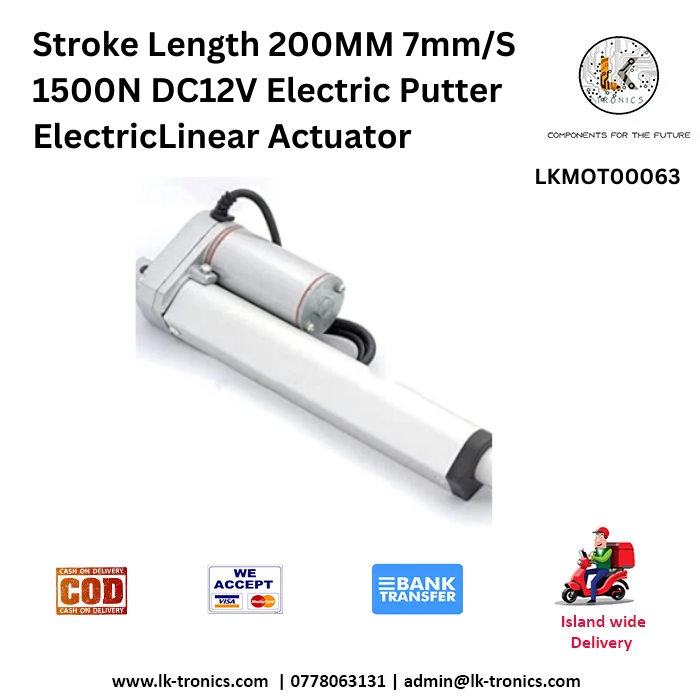

Stroke Length 200MM 7mm/S 1500N DC12V Electric Putter Electric Linear Actuator
$25.31
$39.48
Stroke Length 200MM 7mm/S 1500N DC12V Electric Putter Electric Linear ActuatorTechnical Specifications:Input Voltage:DC 12VStroke Length:200mmSpeed:7mm/s (no load)Rated Thrust (Force):1500N (150 kg or approximately 330 lbs)Duty Cycle:20% (max 2 minutes continuous operation, then rest for 8 minutes)Protection Grade:IP54 (Dust and water-resistant for light splashes)Operating Temperature:-20°C to 65°CNoise Level:≤ 50 dBMaterial:Outer casing: Aluminum AlloyInternal components: Steel/AluminumMounting Type:Front and rear clevis brackets (standard mounting holes)Retracted Length:Stroke length (100mm) ~160mm body length = ~260mm total retracted lengthExtended Length:Retracted length Stroke (100mm) = ~360mm extended lengthRated Current:3A to 5A (depending on load)Load Capacity:Capable of operating at full load with 1500N thrustWire Length:Standard: 1 meter (customizable upon request)End Type:M8 or M10 mounting holes (depending on the design)Control Mode:Standard: Polarity reversal via a switch for extending/retractingCompatible with external controllers (e.g., relays, remote control systems)Lifespan:40,000 cycles under rated load conditionsApplications:Automotive components (e.g., RVs, adjustable car seats)Medical beds and chairsIndustrial machineryHome automation (windows, solar panel tilts, recliners)Agricultural equipment (e.g., harvesters, tractors)Furniture applications (e.g., standing desks, recliners) SKU: LKMOT00063 Categories: Actuator, Motors, Valve, WiFI, Wires
