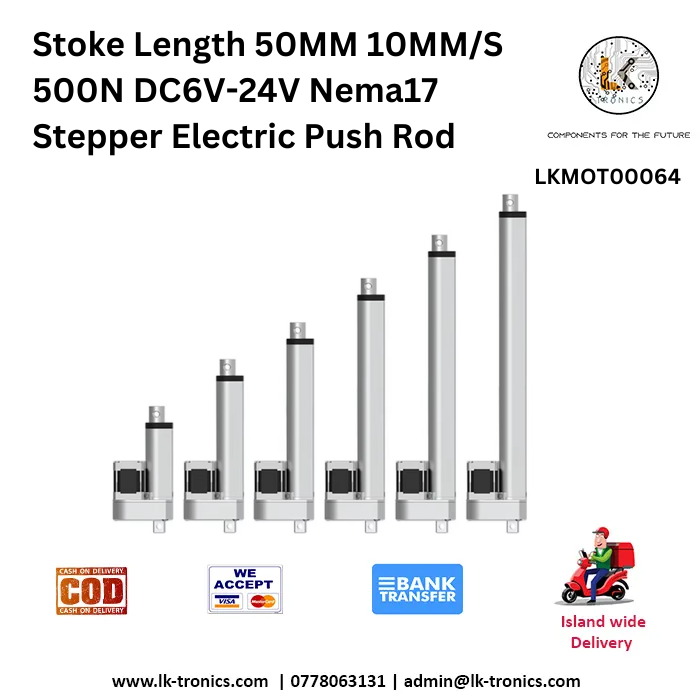

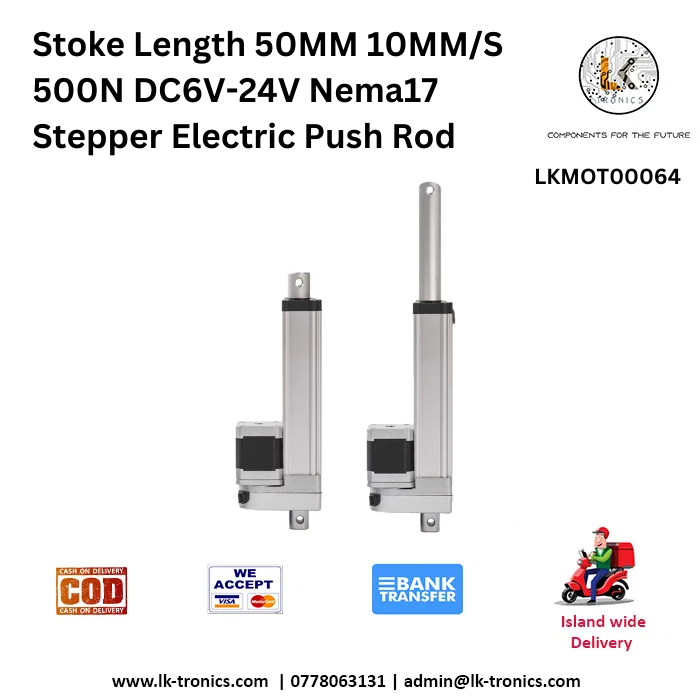

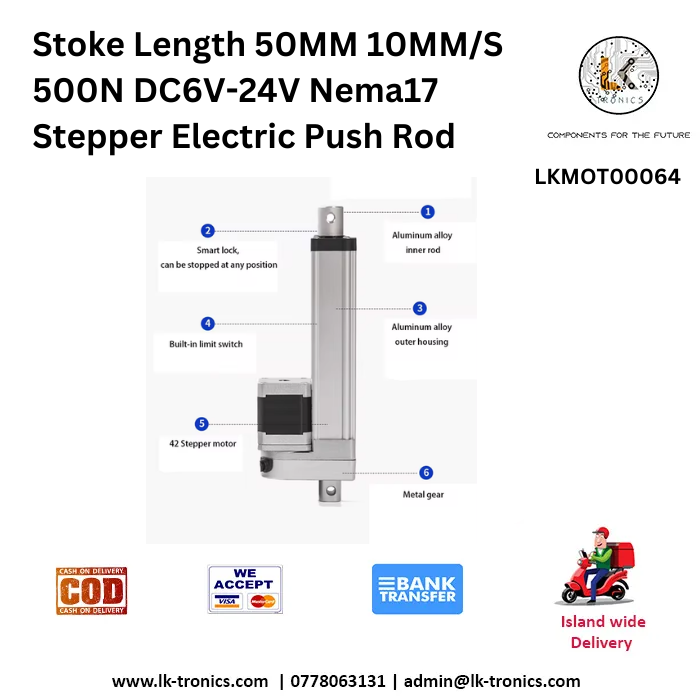

50mm Stroke Electric Push Rod | 500N NEMA17 Stepper Actuator DC 6V-24VThe Stroke Length 50mm Electric Push Rod is a compact and high-performance linear actuator designed for automation and mechanical applications. With a force capacity of 500N, a speed of 10mm/s, and compatibility with NEMA17 stepper motors, this push rod is ideal for robotics, CNC machines, and custom automation projects. Powered by DC 6V-24V, it ensures precision, strength, and reliability in compact applicationsSpecification for Electric Push Rod (Linear Actuator)1. General InformationType: NEMA17 Stepper Motor Integrated Electric Push Rod (Linear Actuator)Stroke Length: 50 mmPush/Pull Force: 500 N (50 kg)Speed: 10 mm/sVoltage Input: DC 6V to 24V2. Stepper Motor Parameters (NEMA 17)Motor Type: Bipolar Stepper MotorStep Angle: 1.8° (200 steps per revolution)Rated Voltage: 6V to 24V (compatible with various drivers)Current Per Phase: 1.2A to 2.0A (based on application)Holding Torque: Approximately 40 – 45 N·cmPhase Resistance: 1.5 to 2.0 ohmsInductance: 2.5 to 4.0 mH3. Linear Actuator ParametersStroke Length: 50 mmPush/Pull Force: 500 N (maximum)Travel Speed: 10 mm/s (under no load, may vary slightly with load)Lead Screw Type: Trapezoidal Thread (e.g., T8x2 or T8x4)Screw Lead: 2 mm to 4 mm per revolutionBacklash: ≤ 0.05 mmSelf-locking: Yes, due to lead screw design4. Mechanical PropertiesMaterial:Push Rod: Stainless Steel or Aluminum AlloyHousing: Anodized Aluminum AlloyMaximum Load: 500 NMounting Bracket Options: Front and rear clevis brackets (standard)Duty Cycle: 20% (maximum 2 minutes continuous operation within 10 minutes)Noise Level: ≤ 55 dB (at 1 meter distance)Life Span: 100,000 cycles under rated load5. Electrical PropertiesCurrent Draw: Varies with load and voltage (typical range: 1.5A to 3A)Drive Type: Microstepping Driver (recommended for smooth operation)Control Mode: Step and Direction Signals (pulse-based control)6. Environmental SpecificationsOperating Temperature: -10°C to 50°CStorage Temperature: -20°C to 60°CProtection Level: IP54 (standard) / Optional IP65 for dust and water resistanceVibration Resistance: Complies with IEC 60068-2-67. ApplicationsCNC MachinesRoboticsPrecision Automation SystemsAdjustable MechanismsLaboratory and Medical EquipmentLinear Motion Systems8. DimensionsMotor Size: NEMA 17 (42 mm x 42 mm)Overall Length: Varies based on stroke and configuration (~150 mm to 200 mm)Mounting Interface: 4 x M3 or M4 holes at NEMA 17 faceplateRod Diameter: 8 mm (typical)End Connectors:Standard Clevis MountThreaded Rod End (optional)VISIT OUR FACEBOOK PAGE FOR MORE INFO | MORE PRODUCT IN OUR SHOP  SKU: LKMOT00064 Categories: Actuator, Motors, Valve, WiFI, Wires Tags: Arduino, Arduino sensors, Stepper Motor Driver
