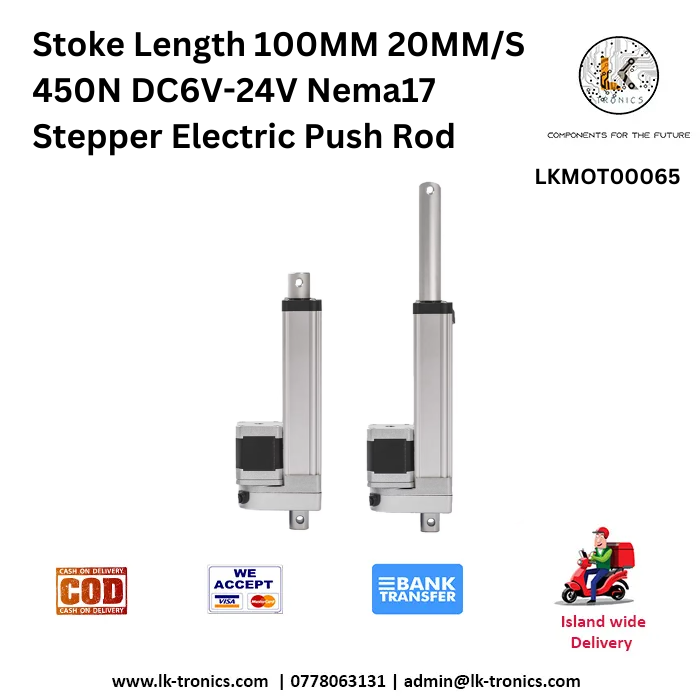

100mm Stroke Electric Push Rod | 450N NEMA17 Stepper Actuator
$32.41
$58.01

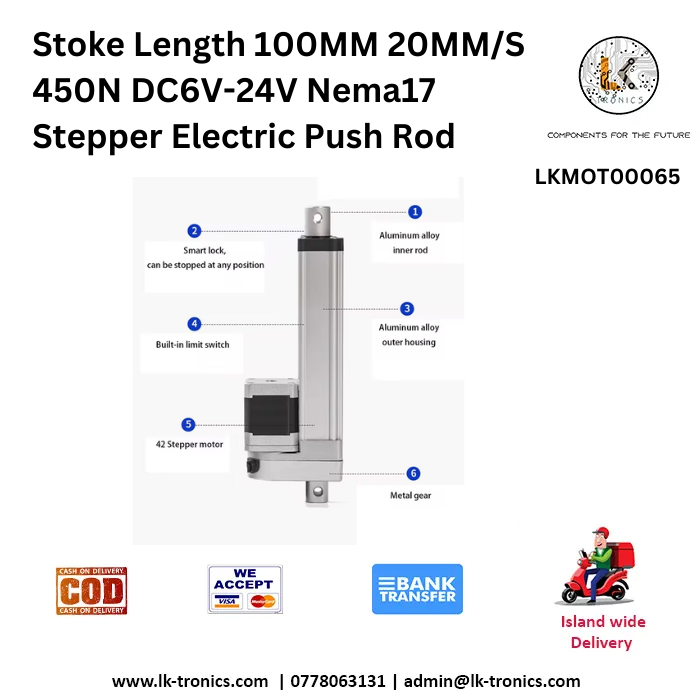

100mm Stroke Electric Push Rod | 450N NEMA17 Stepper Actuator DC 6V-24VSpecificationsModel: Electric Push Rod Actuator with NEMA17 Stepper MotorStroke Length: 100mm (customizable on request)Speed: 20mm/sRated Force (Push/Pull): 450 Newtons (N)Input Voltage: DC6V-24VMotor Type: NEMA17 Stepper MotorDrive Mechanism: Lead screw drive (commonly Trapezoidal Thread)Repeatability: ±0.05mmMounting Configuration:Front and Rear Clevis (Standard)Optional Mounting BracketsMechanical SpecificationsActuator Structure:Aluminum Alloy Housing (Lightweight and Corrosion Resistant)Stainless Steel Lead Screw and Push Rod ShaftStep Angle: 1.8° (200 steps per revolution)Lead Screw Pitch: Commonly 2mm or 4mm depending on travel speed and resolution requirementsStatic Load-Holding: 450N (without power to motor)Duty Cycle: 20-30% (Continuous usage at max load will affect lifespan)Ingress Protection (IP Rating): IP54 (Dust and Light Water Splash Protection)Backlash: ≤ 0.05mmElectrical SpecificationsInput Voltage: DC6V to 24VCurrent per Phase: 1.5A to 2A (Varies by Motor Model)Wiring Configuration: 4-wire Bipolar Stepper MotorColor Coding (Standard): Red, Green, Yellow, BlueTorque (Holding): Approx. 40-60 N·cm (Varies by Stepper Motor Specs)Control Compatibility:Stepper Motor Drivers (e.g., A4988, DRV8825, TMC2209)Microcontrollers (Arduino, Raspberry Pi, PLCs)Performance SpecificationsSpeed Range: Adjustable via stepper motor driver or pulse signalResolution: Depends on driver micro-stepping settingsExample: 1mm per revolution with 200 steps = 0.005mm per stepAcceleration/Deceleration: Programmable via motor driver or controllerNoise Level: ≤ 55dB under normal operating conditionsEnvironmental ConditionsOperating Temperature: -10°C to 50°CStorage Temperature: -20°C to 70°CRelative Humidity: 10% to 85% (non-condensing)100mm Stroke Push Rod ApplicationsPrecision Motion Control ApplicationsAutomation EquipmentLinear Positioning SystemsRobotics and CNC MachinesMedical DevicesIndustrial AutomationVISIT OUR FACEBOOK PAGE FOR MORE INFO | MORE PRODUCT IN OUR SHOP SKU: LKMOT00065 Categories: Actuator, Motors, Valve, WiFI, Wires
