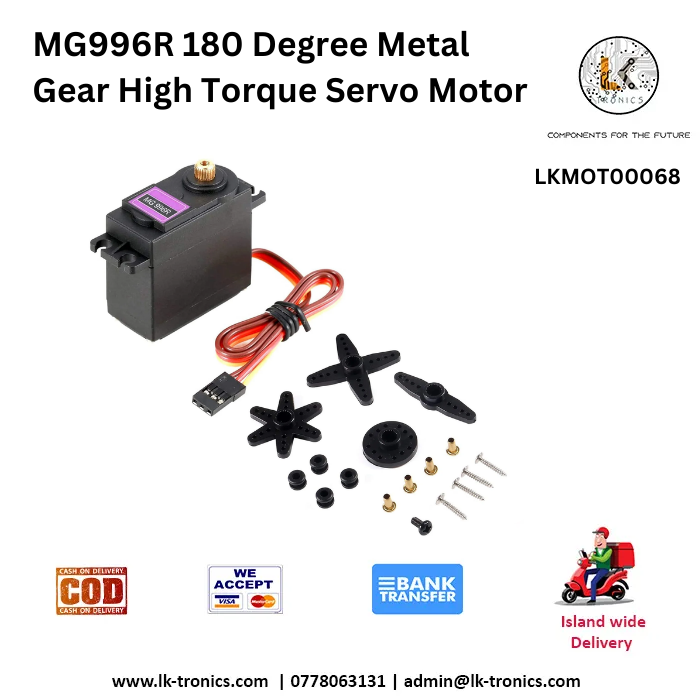

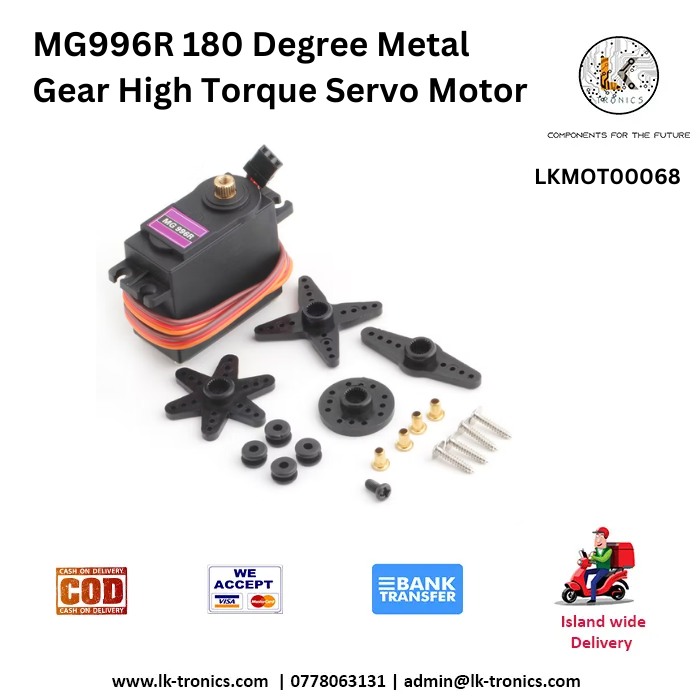

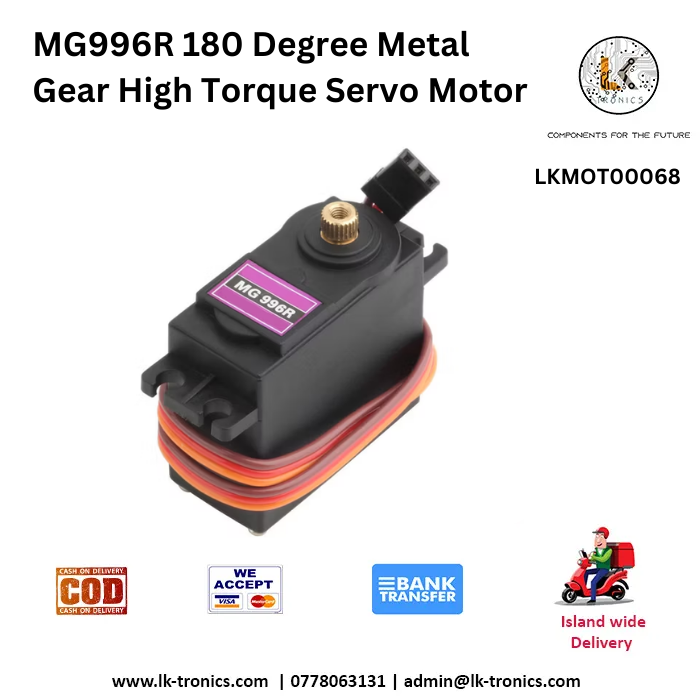

MG996R Servo Motor 180° Metal Gear | High Torque for Robotics & RC ProjectsThe MG996R 180° Metal Gear High Torque Servo Motor is a robust and reliable solution for a wide range of applications, including robotics, RC cars, drones, and mechanical projects. Featuring high-precision control, durable metal gears, and a wide rotation angle of 180°, this servo motor ensures smooth and efficient operation. With a torque capacity of up to 11 kg/cm, the MG996R is perfect for high-demand projects requiring strength and precision.Model: MG996RType: Digital Servo MotorAngle Range: 180° (approx.)Gears: Metal gears for durability and high torque capabilityBearing: Double ball-bearing mechanismControl System: Pulse Width Modulation (PWM)Rotational Direction: Counter-clockwise (CCW)Connector Type: 3-pin (PWM Signal, Vcc, Ground)Electrical Specifications:Operating Voltage: 4.8V to 7.2VOperating Current: ~500mA (idle), up to 2.5A (under stall conditions)Control Signal: PWM (Pulse Width Modulation)Pulse Range: 500µs to 2500µsNeutral Position: 1500µs (90°)Signal Frequency: 50Hz (standard servo control)Performance Specifications:Torque:9.4 kg·cm at 4.8V11 kg·cm at 6VSpeed:0.19 seconds/60° at 4.8V0.15 seconds/60° at 6VMax. Angular Displacement: 180° ±10%Physical Characteristics:Dimensions: 40.7 x 19.7 x 42.9 mmWeight: 55gMaterial:Case: PlasticGears: MetalShaft Type: 25T Spline (compatible with standard servo horns)Connector Pinout:Orange/White Wire: Signal (PWM)Red Wire: Vcc (Power Supply)Brown/Black Wire: GroundThermal and Environmental Specifications:Operating Temperature: -10°C to 50°CStorage Temperature: -20°C to 60°CShock and Vibration Resistance: Moderate for general applicationsAccessories Included:Multiple servo horns (varied shapes)Mounting screwsServo horn fixing hardwareMG996R Servo Motor Applications:Robotics (arms, joints, and grippers)Radio-controlled (RC) cars, planes, and boatsDIY and hobby projectsAutomation systems requiring precise positioningVISIT OUR FACEBOOK PAGE FOR MORE INFO | MORE PRODUCT IN OUR SHOP SKU: LKMOT00068 Categories: Motors, Servo Motors, Valve, WiFI, Wires Tags: Drone parts, drone parts in sri lanka, Robotics
