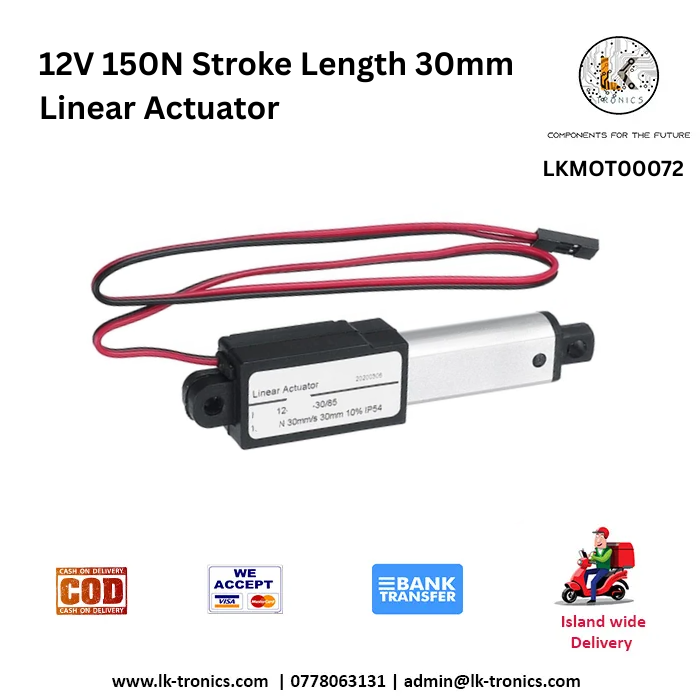

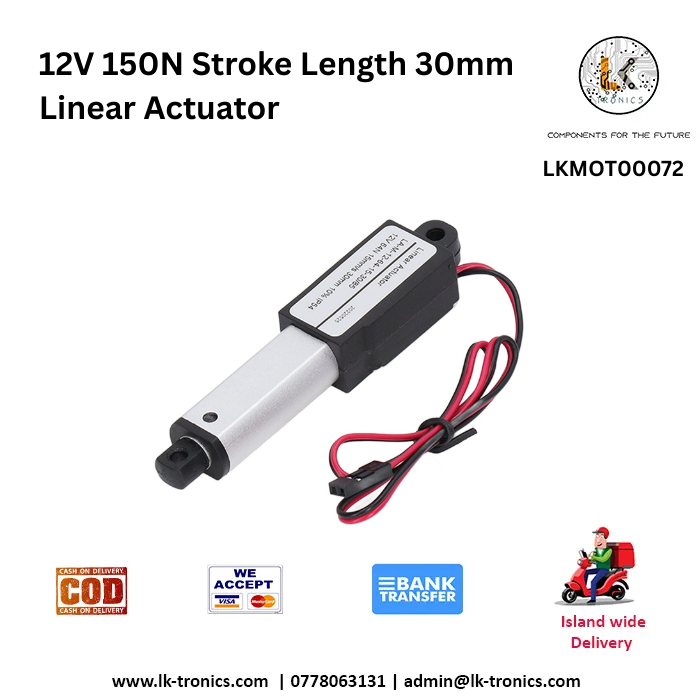

12V 150N Stroke Length 30mm Linear ActuatorGeneral DescriptionA compact 12 V DC linear actuator designed to convert electrical energy into controlled linear motion. Ideal for small automation tasks, robotics, valves, dampers, lifting mechanisms, and positioning applications where short travel and moderate force are required.Electrical SpecificationsRated Voltage: 12 V DCNominal Current: ~0.5 – 1.0 A (no load to rated load)Stall Current: ~1.5 – 2.5 A (approximate)Power Consumption: ~6 – 18 W (varies with load and speed)Mechanical SpecificationsMaximum Push/Pull Force: 150 N (approx. 15.3 kgf)Stroke Length: 30 mmSpeed (no load): ~5 – 15 mm/s (approximate)Speed (rated load): ~3 – 10 mm/s (approximate)Duty Cycle: ~10 % (short duty)Operating Temperature: -10 °C to 60 °CProtection Level: Typically IP42 – IP65 (model dependent)Build & FeaturesMotor Type: Brushed DC geared motorLead Screw: Steel / high-strength lead screwHousing: Anodized aluminum or steel tubeRod: Plated steel push rodLimit Switches: Built-in internal limit switches for automatic travel cutoffMounting:Rear clevis/eye mountPhysical DimensionsRetraction Length: Stroke motor housing rod end (~90 – 120 mm typical)Extended Length: Retraction length StrokeWeight: ~120 – 200 g (varies by model)Interface & InstallationPower Input: 2-wire cable (polarity reversible for extension/retractionControl Options:Simple polarity reversal for extension/retractionOptional limit switch or feedback potentiometer (model dependent)Common ApplicationsSmall robotics motion systemsCabinet / hatch lifting mechanismsWindow / vent actuatorsSolar tracker adjustmentsIndustrial automationPrototyping and custom machines SKU: LKMOT00072 Categories: Actuator, Motors
