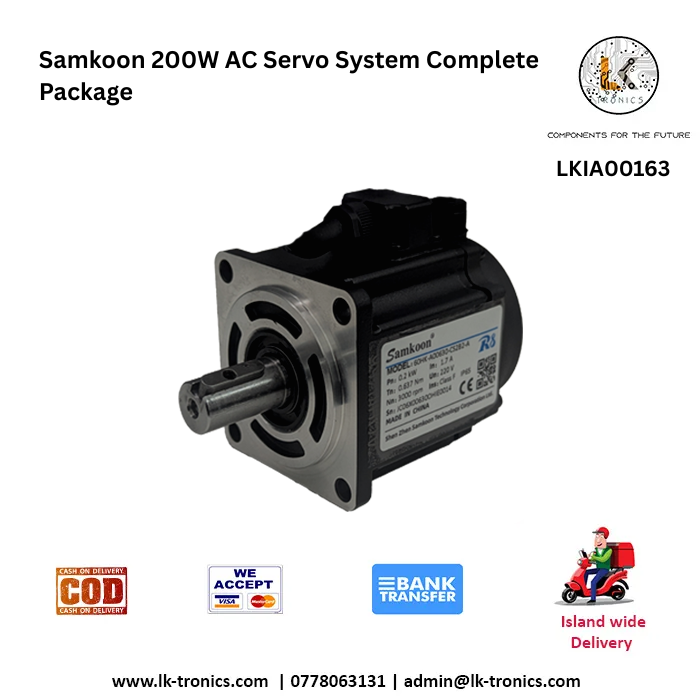

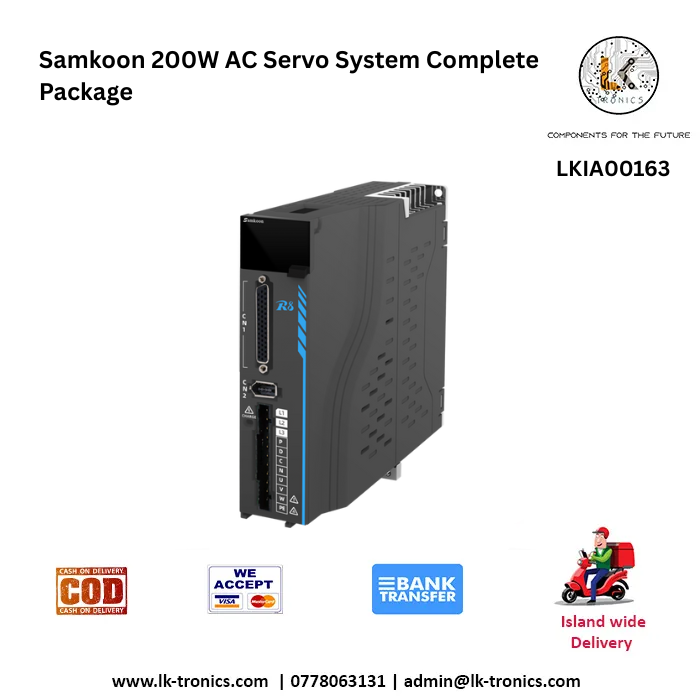

Samkoon 200W AC Servo System Complete PackageHigh-Precision Motion Control Kit: R8 Drive HK Series Motor Professional CablesThis all-in-one Samkoon Servo Kit is designed for demanding industrial automation applications requiring high speed, pinpoint accuracy, and robust reliability. Powered by the advanced R8 Series Drive, this system delivers exceptional response times and seamless integration with mainstream PLCs.What’s Included in This Package:1x R8 Series Servo Drive (R8-2204P-N): A pulse-type 400W drive featuring a 2.1 kHz speed loop bandwidth for ultra-fast response and high-precision control.Designed for 3-phase Permanent Magnet Synchronous Motors (PMSM)1x HK Series Servo Motor (60HK-A00630-CS2B2-A): A high-performance 3-phase permanent magnet synchronous motor offering 0.64Nm rated torque and up to 3000rpm.1x Professional Power Cable (HP-N030P2-AP04B): A 3-meter heavy-duty motor power line designed for stable energy delivery.1x High-Resolution Encoder Cable (HF-N030P1-AP04B): A 3-meter shielded encoder line ensuring precise feedback and signal integrity. Key Performance Features:Rapid System Response: The drive utilizes current sampling up to 16kHz and torque feedforward to reduce position adjustment time to just 5–6ms.High Precision Feedback: Supports 17-bit and 23-bit absolute encoders, providing smooth operation with minimal vibration even at low speeds.Industrial Durability: Built to withstand harsh environments with a wide temperature tolerance and robust anti-interference capabilities.Simplified Setup: Features a Type-C interface for one-click parameter import/export and user-friendly upper-layer software for fast debugging. Servo Drive Module (Model: R8-2204P-N)Input Voltage: Single-phase AC 220V (-15% to 10%), 50/60Hz.Output Power: 400W (0.4kW).Control Method: Pulse Train / RS485 Communication.Speed Frequency Response: 2.0 kHz (allows for ultra-fast reaction times).Encoder: Tamagawa 17/23bitBraking resistor: NoDynamic braking: NoRated Current: 8AProtection Rating: IP20Size (mm): 50x160x173AC Servo Motor (Model: 60HK-A00630-CS2B2-A)Rated Power: 200W (0.2 kW)Rated Torque (Tn): 0.64 N·mRated Speed: 3000 RPMRated Current: 1.7 AVoltage: 220 V ACEncoder: 17-bit Absolute Magnetic Encoding (retains position data)Frame Size: 60mm Standard FlangeProtection: IP65 (Dust-proof and water-jet resistant) Connection & Signal Interface (Cables)Power Cable (HP-N030P2-AP04B):Length: 3 Meters.Construction: High-flex, oil-resistant PVC jacket.Function: Delivers 3-phase power from the drive to the motor.Encoder Cable (HF-N030P1-AP04B):Length: 3 Meters.Construction: Twisted pair shielded cable (minimizes electromagnetic interference).Function: Provides high-speed data feedback from the motor to the drive.VISIT OUR FACEBOOK PAGE FOR MORE INFO | MORE PRODUCT IN OUR SHOP SKU: LKIA00163 Categories: AC Motors, Motors, Servo Motors Tags: Samkoon, Servo
