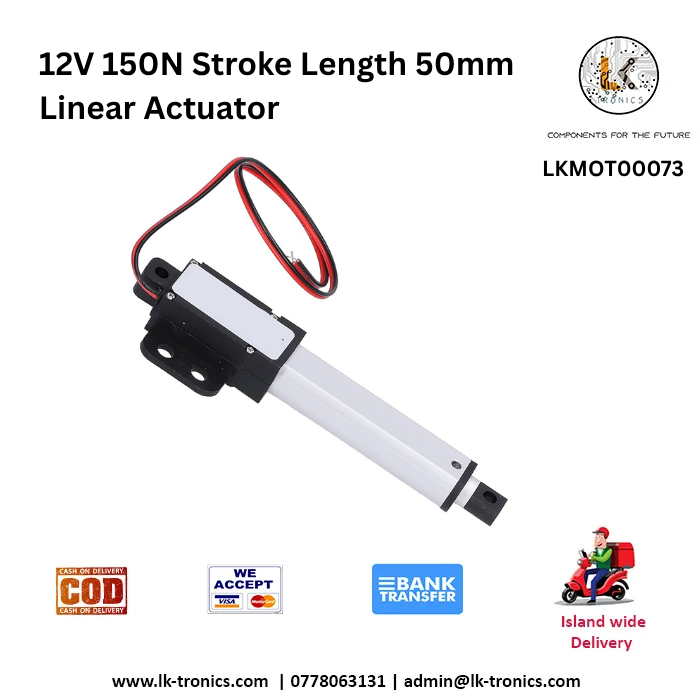

12V 150N Stroke Length 50mm Linear ActuatorSpecificationsOperating CharacteristicsRated Voltage: 12 V DCLoad Capacity (Thrust): Up to 150 N (≈ 15 kgf)Stroke Length: 50 mm (travel distance of the rod)Speed (No Load): ~5–15 mm/s (varies by model/gear ratio)Current Draw:No‑load: ~0.2–0.5 AFull load: ~1.5–3 A (depends on actuator design)Mechanical DetailsBody Length (retracted): ~150–180 mmExtended Length: ~200–230 mm (retracted length stroke)Rod Diameter: ~8–12 mmMounting:Eyelet or clevis ends on both sidesOften with removable pins for easy installationMotor and DriveMotor: DC electric motor (usually brushed)Gearbox: Worm gear or planetary gearbox for torque multiplicationDrive Mechanism: Leadscrew or ball‑screw converts rotation to linear motionFeaturesIntegrated limit switches (automatic stop at ends of stroke)Weather resistance (varies by model: some are IP‑rated)Quiet operation compared to solenoidsReversible motion via polarity reversal on 12 V supplyTypical Use CasesRobotics arms and grippersDoor, lid, or hatch automationAdjustable furniture (beds, desks, chairs)Solar tracking mechanismsAutomated valves and mechanismsSpecificationTypical ValueSupply Voltage12 V DCMaximum Thrust~150 NStroke Length50 mmApprox. Speed~5–15 mm/sCurrent Draw~0.2–3 A (load dependent) SKU: LKMOT00073 Categories: Actuator, Motors
