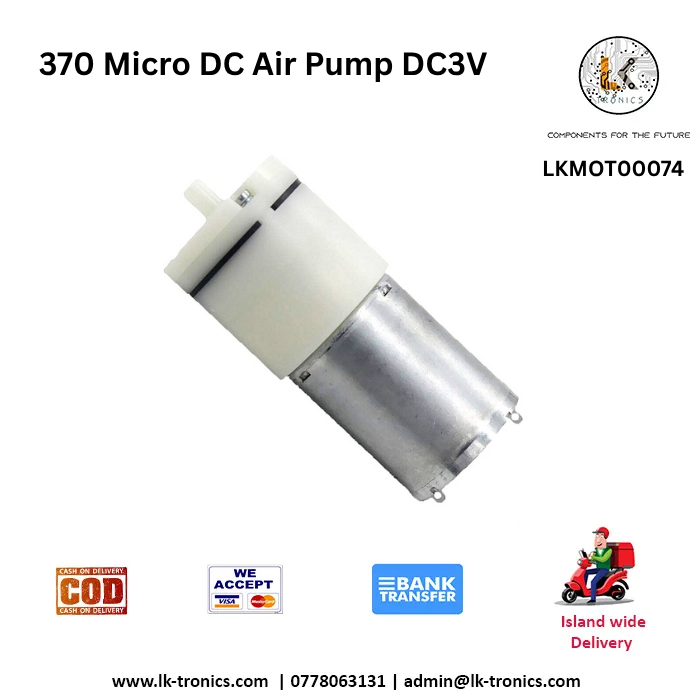

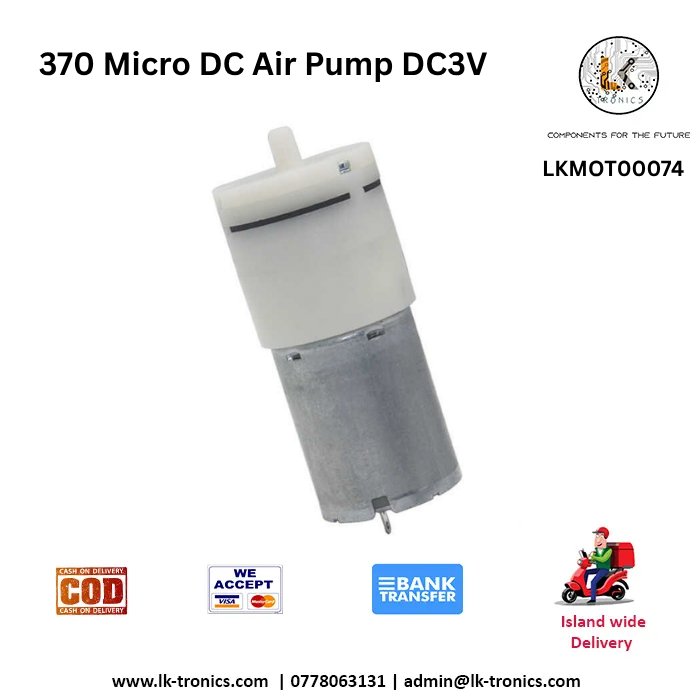

370 Micro DC Air Pump DC3VSpecificationsElectricalRated Voltage: 3 V DCTypical Current Draw: ~500 mA (0.5 A) at 3 VOperating Voltage Range: ~2.5 V – 3.5 V (model dependent)Mechanical & PerformanceMotor Type: 370‑series brushed DC motorPump Type: Miniature air pump/diaphragm or vane styleAir Flow Rate: ~1.5 – 5 L/min (varies by exact model)Maximum Pressure: ~10 – 30 kPa (model dependent)Noise Level: ~40 – 60 dB (approximate)Physical CharacteristicsDimensions: ~37 mm × 20 mm × 20 mm (approximate size of 370 pump)Weight: ~30 – 50 gInlet/Outlet Fittings: Small barbed nozzles for tubingFeaturesCompact and lightweightSimple 2‑wire connectionDesigned for continuous or intermittent operationPumps air (not suitable for liquids without modification)Typical ApplicationsAquarium air pumps (small)Air mattresses and inflatable devicesSmall pneumatic systemsToys and hobby projectsAir sampling or ventsSummary TableSpecificationTypical ValueRated Voltage3 V DCCurrent Draw~500 mAApprox. Flow~1.5 – 5 L/minMax Pressure~10 – 30 kPaSize~37 mm × 20 mm × 20 mm SKU: LKMOT00074 Categories: DC Motors, Motors
