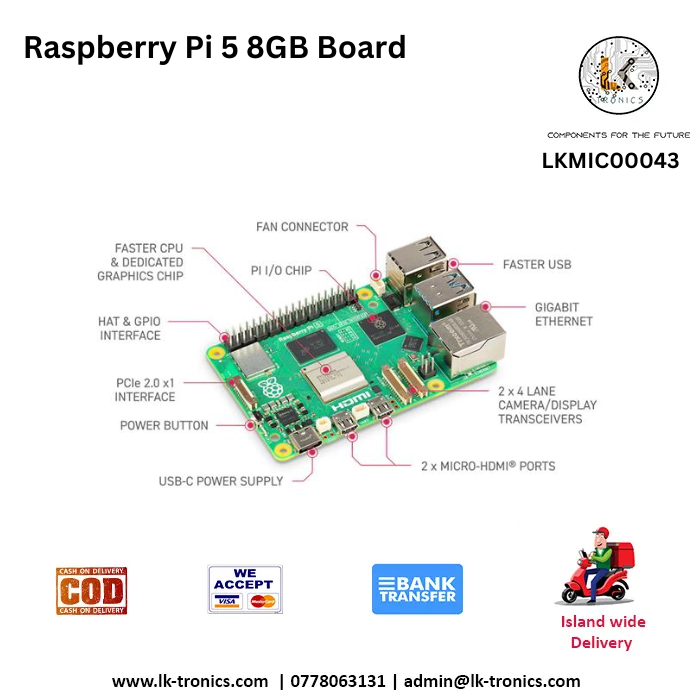

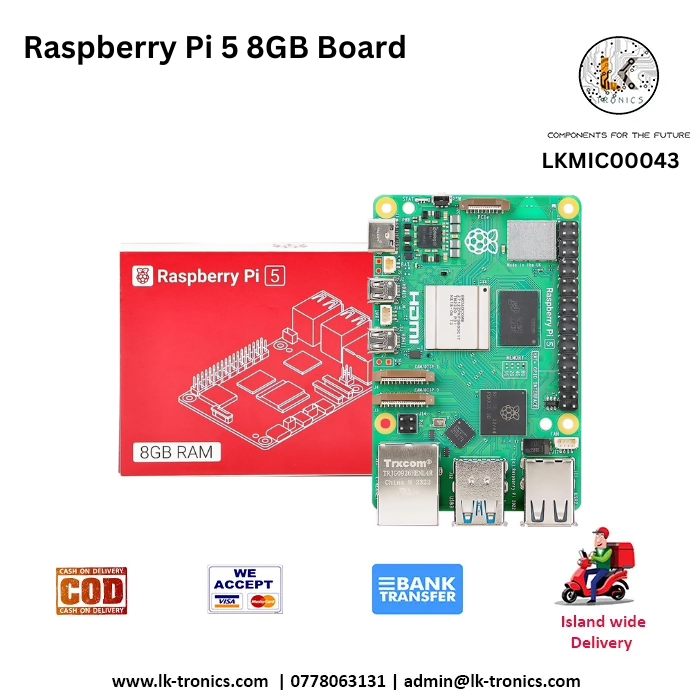

Raspberry Pi 5 8GB Board

Raspberry Pi 5 8GB BoardSpecificationProduct Name: Raspberry Pi 5 Model B – 8GB RAMModel Number: RPI5-MB-8GBManufacturer: Raspberry Pi Ltd.Launch Date: October 2023Form Factor: Credit card-sized single-board computerTarget Use: Education, embedded systems, desktop computing, robotics, industrial control, media centersProcessor (CPU)SoC: Broadcom BCM2712CPU Type: Quad-core ARM Cortex-A76 (64-bit)Clock Speed: 2.4 GHz (default)L1 Cache: 64KB per coreL2 Cache: 512KB per coreL3 Cache: Shared 2MBGraphics Processor (GPU)GPU: Broadcom VideoCore VIISupports:OpenGL ES 3.1Vulkan 1.2Dual 4Kp60 output (via HDMI)4K H.265 (HEVC) decode and encode1080p H.264 decode and encodeMemory (RAM)Type: LPDDR4X SDRAMCapacity: 8GB (Also available in 4GB variant)Bus Width: 64-bitSpeed: ~4267 MT/sStorage OptionsMicroSD Card Slot: Yes, for OS and file storage (UHS-I supported)PCIe Support:1 × PCIe 2.0 x1 lane (via FFC connector; requires separate HAT)Boot Options:microSDUSB 3.0Network (via PXE boot)ConnectivityNetworkingGigabit Ethernet: Yes (True gigabit, not over USB)Wi-Fi: Dual-band 802.11ac (2.4GHz & 5GHz)Bluetooth: Bluetooth 5.0 BLEUSB PortsUSB 3.0 Ports: 2 × USB 3.0 (5Gbps)USB 2.0 Ports: 2 × USB 2.0Supports boot from USBDisplay & CameraHDMI Ports:2 × micro-HDMI (each supports up to 4K@60Hz)Camera Interface:2 × 4-lane MIPI CSI (Camera Serial Interface)Display Interface:2 × 4-lane MIPI DSI (Display Serial Interface)Expansion & GPIOGPIO Header: 40-pin GPIO (fully backward compatible with previous models)GPIO Voltage Levels: 3.3V logic (5V tolerant inputs)I2C, SPI, UART, and PWM support availablePCIe Interface: 1-lane PCIe Gen 2 (via FFC)Real-Time Clock (RTC): Supported via onboard header (requires external battery)Power & ThermalPower Input: USB-C (5V DC input, 5A recommended)Typical Power Usage: 4W – 12W depending on usagePower Management: PMIC with dynamic voltage scalingCooling Requirement: Passive cooling is possible; active cooling is recommended for full performanceSupports official active cooler and heatsinkOperating SystemsOfficial OS: Raspberry Pi OS (64-bit recommended)Other Compatible OSes:UbuntuDebianArch Linux ARMLibreELEC (media center)Windows IoT CoreCustom Linux distributionsDimensions & WeightBoard Dimensions: 85.6mm × 56.5mm × ~18mm (varies slightly with connectors)Mounting Holes: 4 × M2.5 mounting holesWeight: ~50g (bare board)  SKU: LKMIC00043 Categories: Microcontrollers, Raspberry Pi
