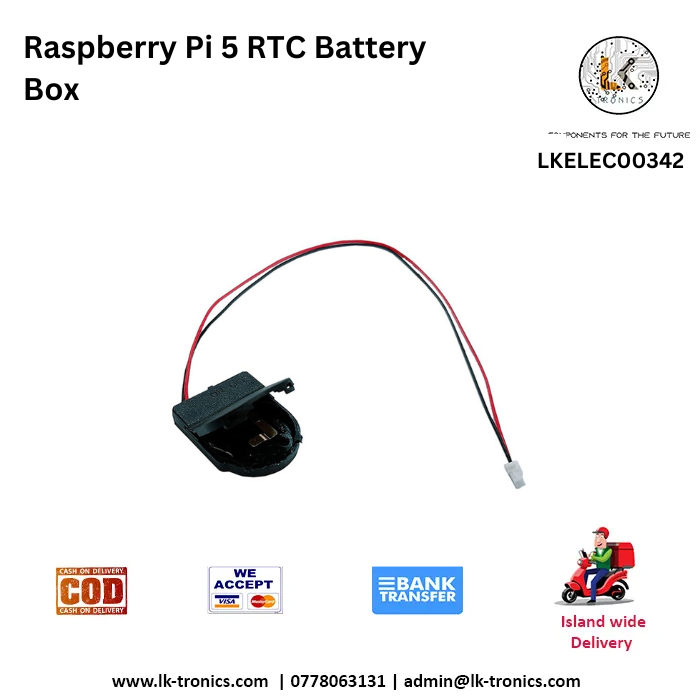

RTC Battery Kit Real Time Clock Holder (Not include CR2032 Battery) for Raspberry Pi 5

RTC Battery Kit Real Time Clock Holder (Not include CR2032 Battery) for Raspberry Pi 5Specification(CR2032 Battery Not Included)The RTC (Real-Time Clock) Battery Kit is designed to provide continuous timekeeping functionality to the Raspberry Pi 5, even when power is disconnected. It includes a battery holder and connection cable, enabling the Raspberry Pi to maintain date and time across reboots and power losses. Ideal for headless systems, data loggers, or remote applications without internet access.Product FeaturesPlug-and-play RTC backup battery holderMaintains system time when the Raspberry Pi is powered offDesigned for the Raspberry Pi 5 RTC headerConnects directly to the RTC 4-pin JST 1.25mm connector on the Pi 5Compact, lightweight, and easy to installCR2032 battery not included for shipping safety complianceTechnical Specifications✅ Battery HolderType: Coin cell battery holderBattery Compatibility: CR2032 3V Lithium Coin Cell (20mm × 3.2mm)Rated Voltage: 3V nominalHolder Material: High-impact ABS plastic or PBT (UL94V-0)Contact Material: Phosphor bronze or stainless steel (nickel-plated)Mounting Type: PCB mount or free-hangingRetention Mechanism: Snap-in spring contact✅ CableConnector Type: JST 1.25mm 4-pin (compatible with Raspberry Pi 5 RTC port)Cable Length: ~10–15cmWire Gauge: 26–28 AWGWire Colors: Color-coded for polarity identificationConnections:Red: VCC (Battery )Black: GNDOther wires (optional): NC / ReservedCompatibilityDesigned specifically for:Raspberry Pi 5 (uses built-in RTC circuit, supports external battery)Not compatible with older Raspberry Pi models without onboard RTC (unless a separate RTC module is used) SKU: LKELEC00342 Categories: Microcontrollers, Raspberry Pi
