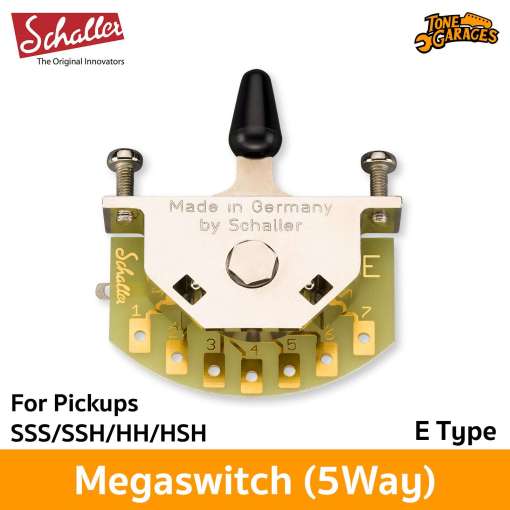

Schaller Megaswitch “E” type guitar and bass (5-Way)

Schaller Megaswitches “E” type for Pickups for Pickups SSS/SSH/HH/HSH Megaswitch for guitar and bass 5-way for a wide range of circuit variations Get more out of your guitar’s pickup combinations. Pickups such as singles coils (one magnetic coil) and/or humbuckers (with two individual coils) can be interconnected in different ways. This opens up a wide variety of sound combinations in electrically amplified instruments such as electric guitars or electric basses equipped with multiple pickups. Whether parallel, series connection or out-of-phase Only the best materials for our production sturdy metal housing high-strength and movable parts gold-plated conductor tracks on the circuit board, which guarantee perfect sound transmission precise engagement in all switch positions optimal function for a long life Additional information on switching- and circuit-diagrams can be found in the following operating instructions for Megaswitch Guitar and Megaswitch Bass. Technical specifications Weight: 34 g Button size: 3.6 x 1.4 mm Dimension (w x h x d): 48 x 54.4 x 15.1 mm Distance between mounting screws Control Plate: 40.7 mm Socket housing depth without switch: 30 mm Scope of delivery includes a black switch knob Scope of supply 1 x Megaswitch (type according to your selection in the product configurator) 2 x mounting screws M3 x 10 (Schaller GmbH accepts no responsibility or liability for the correctness, accuracy and completeness of the following technical drawing/s.)   technical drawings (without engagement) 1531 (pdf-file)
